Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_Effect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd

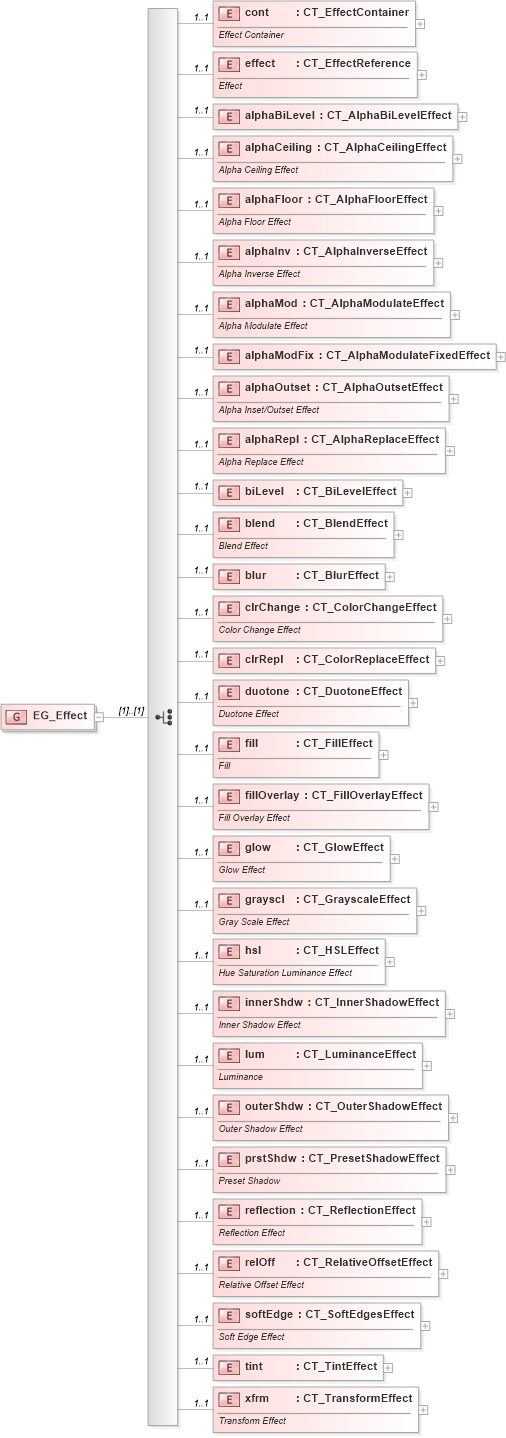

Collapse XSD Schema Diagram:
Drilldown into xfrm in schema dml-shapeeffects_xsd Drilldown into tint in schema dml-shapeeffects_xsd Drilldown into softEdge in schema dml-shapeeffects_xsd Drilldown into relOff in schema dml-shapeeffects_xsd Drilldown into reflection in schema dml-shapeeffects_xsd Drilldown into prstShdw in schema dml-shapeeffects_xsd Drilldown into outerShdw in schema dml-shapeeffects_xsd Drilldown into lum in schema dml-shapeeffects_xsd Drilldown into innerShdw in schema dml-shapeeffects_xsd Drilldown into hsl in schema dml-shapeeffects_xsd Drilldown into grayscl in schema dml-shapeeffects_xsd Drilldown into glow in schema dml-shapeeffects_xsd Drilldown into fillOverlay in schema dml-shapeeffects_xsd Drilldown into fill in schema dml-shapeeffects_xsd Drilldown into duotone in schema dml-shapeeffects_xsd Drilldown into clrRepl in schema dml-shapeeffects_xsd Drilldown into clrChange in schema dml-shapeeffects_xsd Drilldown into blur in schema dml-shapeeffects_xsd Drilldown into blend in schema dml-shapeeffects_xsd Drilldown into biLevel in schema dml-shapeeffects_xsd Drilldown into alphaRepl in schema dml-shapeeffects_xsd Drilldown into alphaOutset in schema dml-shapeeffects_xsd Drilldown into alphaModFix in schema dml-shapeeffects_xsd Drilldown into alphaMod in schema dml-shapeeffects_xsd Drilldown into alphaInv in schema dml-shapeeffects_xsd Drilldown into alphaFloor in schema dml-shapeeffects_xsd Drilldown into alphaCeiling in schema dml-shapeeffects_xsd Drilldown into alphaBiLevel in schema dml-shapeeffects_xsd Drilldown into effect in schema dml-shapeeffects_xsd Drilldown into cont in schema dml-shapeeffects_xsdXSD Diagram of EG_Effect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_Effect">
    <xsd:choice>
        <xsd:element name="cont" type="CT_EffectContainer" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Effect Container</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="effect" type="CT_EffectReference" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaBiLevel" type="CT_AlphaBiLevelEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="alphaCeiling" type="CT_AlphaCeilingEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Ceiling Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaFloor" type="CT_AlphaFloorEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Floor Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaInv" type="CT_AlphaInverseEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Inverse Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaMod" type="CT_AlphaModulateEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Modulate Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaModFix" type="CT_AlphaModulateFixedEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="alphaOutset" type="CT_AlphaOutsetEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Inset/Outset Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaRepl" type="CT_AlphaReplaceEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Replace Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="biLevel" type="CT_BiLevelEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="blend" type="CT_BlendEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Blend Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blur" type="CT_BlurEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="clrChange" type="CT_ColorChangeEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Color Change Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="clrRepl" type="CT_ColorReplaceEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="duotone" type="CT_DuotoneEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Duotone Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fill" type="CT_FillEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fillOverlay" type="CT_FillOverlayEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Fill Overlay Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="glow" type="CT_GlowEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Glow Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="grayscl" type="CT_GrayscaleEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gray Scale Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hsl" type="CT_HSLEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hue Saturation Luminance Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="innerShdw" type="CT_InnerShadowEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Inner Shadow Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lum" type="CT_LuminanceEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Luminance</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="outerShdw" type="CT_OuterShadowEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Outer Shadow Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="prstShdw" type="CT_PresetShadowEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Preset Shadow</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="reflection" type="CT_ReflectionEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Reflection Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="relOff" type="CT_RelativeOffsetEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Relative Offset Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="softEdge" type="CT_SoftEdgesEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Soft Edge Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tint" type="CT_TintEffect" minOccurs="1" maxOccurs="1" />
        <xsd:element name="xfrm" type="CT_TransformEffect" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Transform Effect</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cont a:cont 1 1
effect a:effect 1 1
alphaBiLevel a:alphaBiLevel 1 1
alphaCeiling a:alphaCeiling 1 1
alphaFloor a:alphaFloor 1 1
alphaInv a:alphaInv 1 1
alphaMod a:alphaMod 1 1
alphaModFix a:alphaModFix 1 1
alphaOutset a:alphaOutset 1 1
alphaRepl a:alphaRepl 1 1
biLevel a:biLevel 1 1
blend a:blend 1 1
blur a:blur 1 1
clrChange a:clrChange 1 1
clrRepl a:clrRepl 1 1
duotone a:duotone 1 1
fill a:fill 1 1
fillOverlay a:fillOverlay 1 1
glow a:glow 1 1
grayscl a:grayscl 1 1
hsl a:hsl 1 1
innerShdw a:innerShdw 1 1
lum a:lum 1 1
outerShdw a:outerShdw 1 1
prstShdw a:prstShdw 1 1
reflection a:reflection 1 1
relOff a:relOff 1 1
softEdge a:softEdge 1 1
tint a:tint 1 1
xfrm a:xfrm 1 1
