Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: outerShdw
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_OuterShadowEffect
Containing Schema: dml-shapeEffects.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Outer Shadow Effect

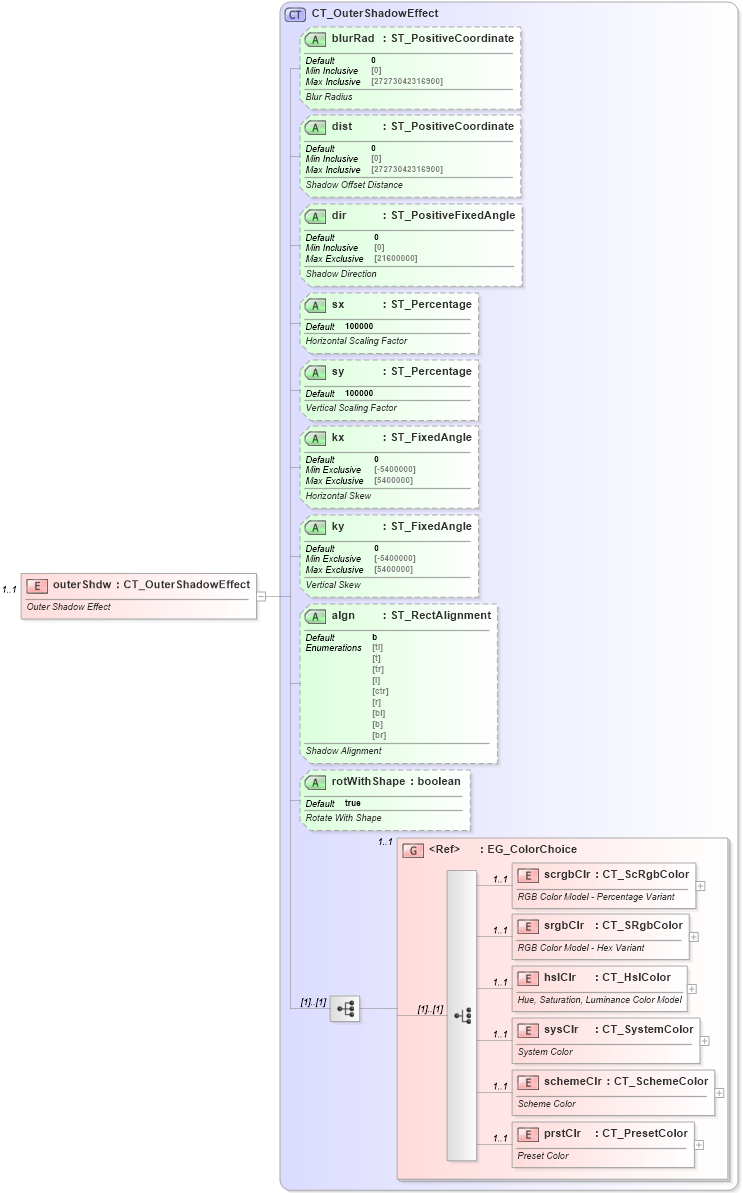

Collapse XSD Schema Diagram:
Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into rotWithShape in schema dml-shapeeffects_xsd Drilldown into algn in schema dml-shapeeffects_xsd Drilldown into ky in schema dml-shapeeffects_xsd Drilldown into kx in schema dml-shapeeffects_xsd Drilldown into sy in schema dml-shapeeffects_xsd Drilldown into sx in schema dml-shapeeffects_xsd Drilldown into dir in schema dml-shapeeffects_xsd Drilldown into dist in schema dml-shapeeffects_xsd Drilldown into blurRad in schema dml-shapeeffects_xsd Drilldown into CT_OuterShadowEffect in schema dml-shapeeffects_xsdXSD Diagram of outerShdw in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="outerShdw" type="CT_OuterShadowEffect" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Outer Shadow Effect</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
<xs:group> a:EG_ColorChoice 1 1
Collapse Child Attributes:
Name Type Default Value Use
blurRad a:blurRad 0 Optional
dist a:dist 0 Optional
dir a:dir 0 Optional
sx a:sx 100000 Optional
sy a:sy 100000 Optional
kx a:kx 0 Optional
ky a:ky 0 Optional
algn a:algn b Optional
rotWithShape a:rotWithShape true Optional
Collapse Derivation Tree:
