Definition Type: Group
Name: Group_DLbls
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Collapse XSD Schema Diagram:

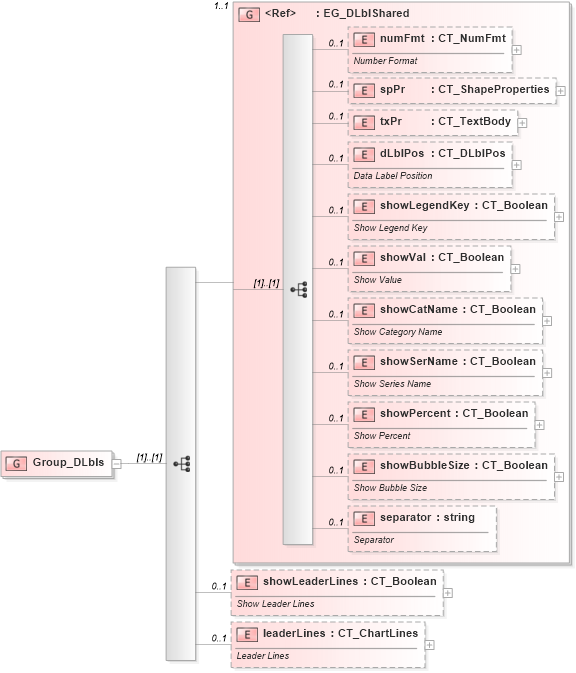

Drilldown into leaderLines in schema dml-chart_xsd Drilldown into showLeaderLines in schema dml-chart_xsd Drilldown into separator in schema dml-chart_xsd Drilldown into showBubbleSize in schema dml-chart_xsd Drilldown into showPercent in schema dml-chart_xsd Drilldown into showSerName in schema dml-chart_xsd Drilldown into showCatName in schema dml-chart_xsd Drilldown into showVal in schema dml-chart_xsd Drilldown into showLegendKey in schema dml-chart_xsd Drilldown into dLblPos in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into EG_DLblShared in schema dml-chart_xsdXSD Diagram of Group_DLbls in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="Group_DLbls">
    <xsd:sequence>
        <xsd:group ref="EG_DLblShared" minOccurs="1" maxOccurs="1">
        </xsd:group>
        <xsd:element name="showLeaderLines" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Leader Lines</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="leaderLines" type="CT_ChartLines" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Leader Lines</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
numFmt nsA:numFmt 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
dLblPos nsA:dLblPos 0 1
showLegendKey nsA:showLegendKey 0 1
showVal nsA:showVal 0 1
showCatName nsA:showCatName 0 1
showSerName nsA:showSerName 0 1
showPercent nsA:showPercent 0 1
showBubbleSize nsA:showBubbleSize 0 1
separator nsA:separator 0 1
showLeaderLines nsA:showLeaderLines 0 1
leaderLines nsA:leaderLines 0 1
<xs:group> nsA:EG_DLblShared 1 1
