Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: hyperlink
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Type: w:CT_Hyperlink
Containing Schema: wml.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Hyperlink

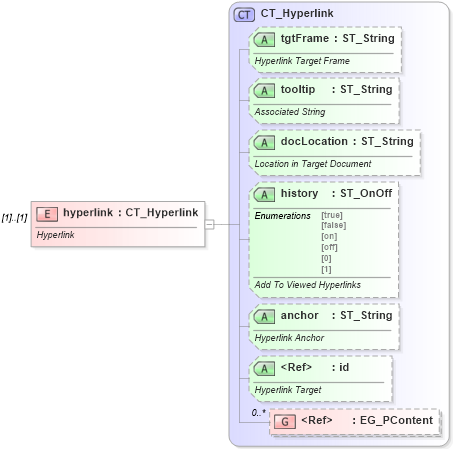

Collapse XSD Schema Diagram:
Drilldown into EG_PContent in schema wml_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into anchor in schema wml_xsd Drilldown into history in schema wml_xsd Drilldown into docLocation in schema wml_xsd Drilldown into tooltip in schema wml_xsd Drilldown into tgtFrame in schema wml_xsd Drilldown into CT_Hyperlink in schema wml_xsdXSD Diagram of hyperlink in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="hyperlink" type="CT_Hyperlink">
    <xsd:annotation>
        <xsd:documentation>Hyperlink</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
customXml w:customXml (1) (1)
smartTag w:smartTag (1) (1)
sdt w:sdt (1) (1)
r w:r (1) (1)
proofErr w:proofErr 0 (1)
permStart w:permStart 0 (1)
permEnd w:permEnd 0 (1)
bookmarkStart w:bookmarkStart (1) (1)
bookmarkEnd w:bookmarkEnd (1) (1)
moveFromRangeStart w:moveFromRangeStart (1) (1)
moveFromRangeEnd w:moveFromRangeEnd (1) (1)
moveToRangeStart w:moveToRangeStart (1) (1)
moveToRangeEnd w:moveToRangeEnd (1) (1)
commentRangeStart w:commentRangeStart (1) (1)
commentRangeEnd w:commentRangeEnd (1) (1)
customXmlInsRangeStart w:customXmlInsRangeStart (1) (1)
customXmlInsRangeEnd w:customXmlInsRangeEnd (1) (1)
customXmlDelRangeStart w:customXmlDelRangeStart (1) (1)
customXmlDelRangeEnd w:customXmlDelRangeEnd (1) (1)
customXmlMoveFromRangeStart w:customXmlMoveFromRangeStart (1) (1)
customXmlMoveFromRangeEnd w:customXmlMoveFromRangeEnd (1) (1)
customXmlMoveToRangeStart w:customXmlMoveToRangeStart (1) (1)
customXmlMoveToRangeEnd w:customXmlMoveToRangeEnd (1) (1)
ins w:ins 0 (1)
del w:del 0 (1)
moveFrom w:moveFrom (1) (1)
moveTo w:moveTo (1) (1)
oMathPara m:oMathPara (1) (1)
oMath m:oMath (1) (1)
fldSimple w:fldSimple 0 unbounded
hyperlink w:hyperlink (1) (1)
subDoc w:subDoc (1) (1)
<xs:group> w:EG_ContentRunContent 0 unbounded
<xs:group> w:EG_RunLevelElts 0 unbounded
<xs:group> w:EG_RangeMarkupElements 0 unbounded
<xs:group> w:EG_MathContent 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
tgtFrame w:tgtFrame Optional
tooltip w:tooltip Optional
docLocation w:docLocation Optional
history w:history Optional
anchor w:anchor Optional
id r:id (Optional)
Collapse Derivation Tree:
