Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: nc
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Cell
Containing Schema: sml-sharedWorkbookRevisions.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
New Cell Data

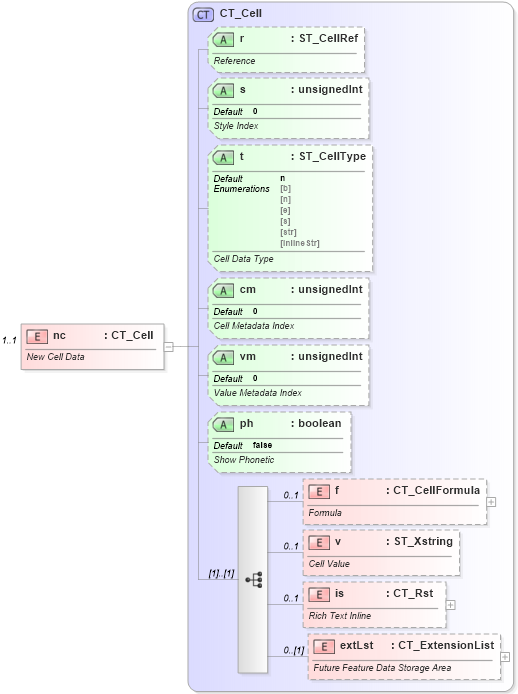

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheet_xsd Drilldown into is in schema sml-sheet_xsd Drilldown into v in schema sml-sheet_xsd Drilldown into f in schema sml-sheet_xsd Drilldown into ph in schema sml-sheet_xsd Drilldown into vm in schema sml-sheet_xsd Drilldown into cm in schema sml-sheet_xsd Drilldown into t in schema sml-sheet_xsd Drilldown into s in schema sml-sheet_xsd Drilldown into r in schema sml-sheet_xsd Drilldown into CT_Cell in schema sml-sheet_xsdXSD Diagram of nc in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="nc" type="CT_Cell" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>New Cell Data</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
f nsM:f 0 1
v nsM:v 0 1
is nsM:is 0 1
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
r nsM:r Optional
s nsM:s 0 Optional
t nsM:t n Optional
cm nsM:cm 0 Optional
vm nsM:vm 0 Optional
ph nsM:ph false Optional
Collapse Derivation Tree:
