Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: set
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Set
Containing Schema: sml-pivotTable.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
OLAP Set

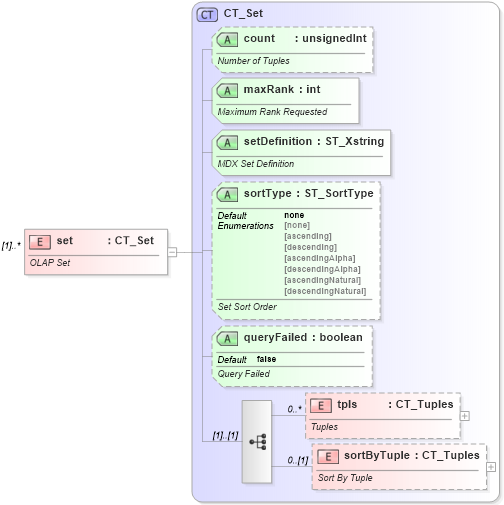

Collapse XSD Schema Diagram:
Drilldown into sortByTuple in schema sml-pivottable_xsd Drilldown into tpls in schema sml-pivottable_xsd Drilldown into queryFailed in schema sml-pivottable_xsd Drilldown into sortType in schema sml-pivottable_xsd Drilldown into setDefinition in schema sml-pivottable_xsd Drilldown into maxRank in schema sml-pivottable_xsd Drilldown into count in schema sml-pivottable_xsd Drilldown into CT_Set in schema sml-pivottable_xsdXSD Diagram of set in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="set" maxOccurs="unbounded" type="CT_Set">
    <xsd:annotation>
        <xsd:documentation>OLAP Set</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tpls nsM:tpls 0 unbounded
sortByTuple nsM:sortByTuple 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
count nsM:count (Optional)
maxRank nsM:maxRank Required
setDefinition nsM:setDefinition Required
sortType nsM:sortType none (Optional)
queryFailed nsM:queryFailed false (Optional)
Collapse Derivation Tree:
