Definition Type: Element
Name: uLn
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_LineProperties
Containing Schema: dml-textCharacter.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Underline Stroke

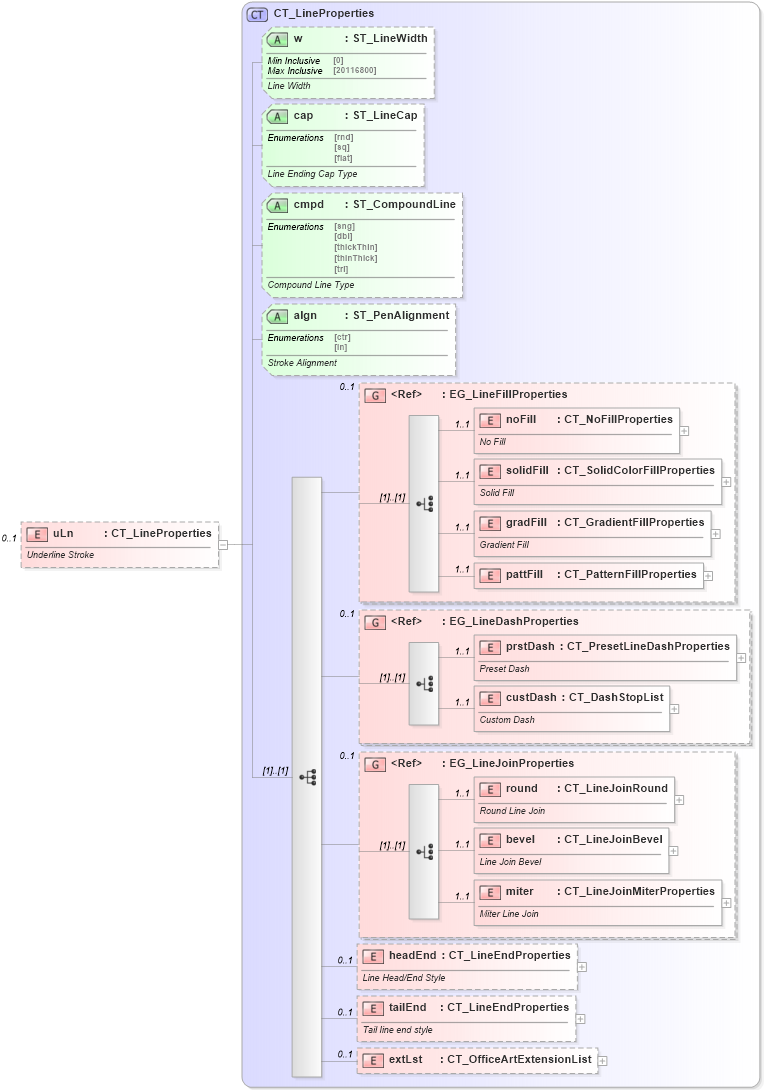

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-shapelineproperties_xsd Drilldown into tailEnd in schema dml-shapelineproperties_xsd Drilldown into headEnd in schema dml-shapelineproperties_xsd Drilldown into miter in schema dml-shapelineproperties_xsd Drilldown into bevel in schema dml-shapelineproperties_xsd Drilldown into round in schema dml-shapelineproperties_xsd Drilldown into EG_LineJoinProperties in schema dml-shapelineproperties_xsd Drilldown into custDash in schema dml-shapelineproperties_xsd Drilldown into prstDash in schema dml-shapelineproperties_xsd Drilldown into EG_LineDashProperties in schema dml-shapelineproperties_xsd Drilldown into pattFill in schema dml-shapelineproperties_xsd Drilldown into gradFill in schema dml-shapelineproperties_xsd Drilldown into solidFill in schema dml-shapelineproperties_xsd Drilldown into noFill in schema dml-shapelineproperties_xsd Drilldown into EG_LineFillProperties in schema dml-shapelineproperties_xsd Drilldown into algn in schema dml-shapelineproperties_xsd Drilldown into cmpd in schema dml-shapelineproperties_xsd Drilldown into cap in schema dml-shapelineproperties_xsd Drilldown into w in schema dml-shapelineproperties_xsd Drilldown into CT_LineProperties in schema dml-shapelineproperties_xsdXSD Diagram of uLn in schema dml-textcharacter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="uLn" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Underline Stroke</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
pattFill a:pattFill 1 1
prstDash a:prstDash 1 1
custDash a:custDash 1 1
round a:round 1 1
bevel a:bevel 1 1
miter a:miter 1 1
headEnd a:headEnd 0 1
tailEnd a:tailEnd 0 1
extLst a:extLst 0 1
<xs:group> a:EG_LineFillProperties 0 1
<xs:group> a:EG_LineDashProperties 0 1
<xs:group> a:EG_LineJoinProperties 0 1
Collapse Child Attributes:
Name Type Default Value Use
w a:w Optional
cap a:cap Optional
cmpd a:cmpd Optional
algn a:algn Optional
Collapse Derivation Tree:
