Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: valAx
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Type: nsA:CT_ValAx
Containing Schema: dml-chart.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Value Axis

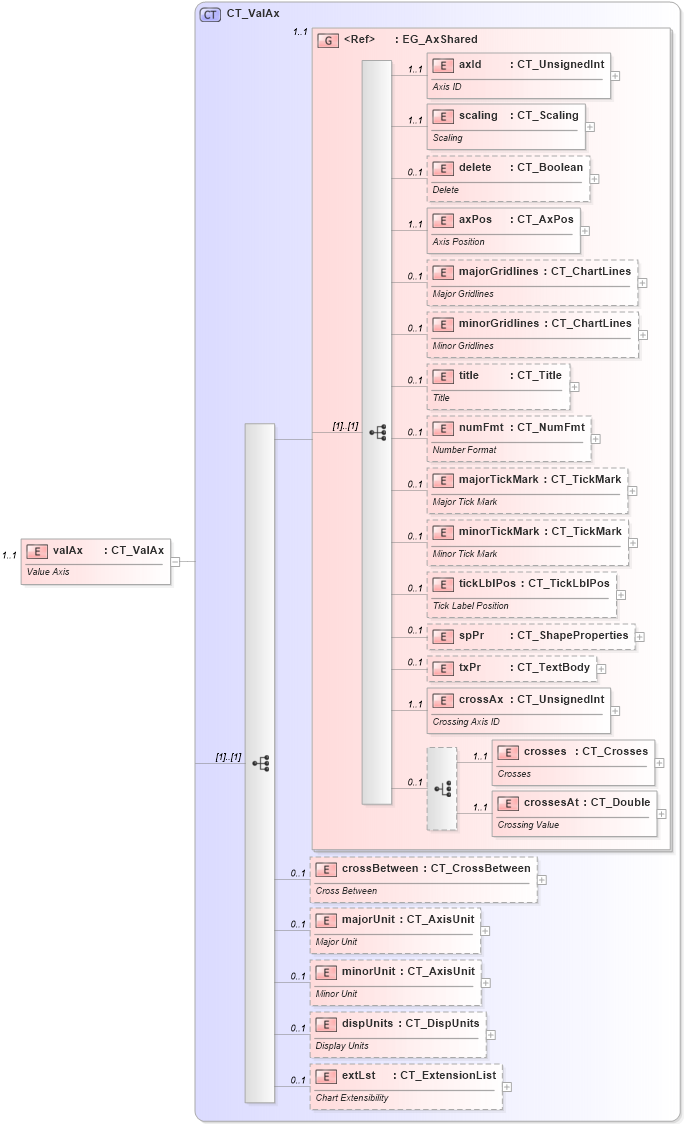

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into dispUnits in schema dml-chart_xsd Drilldown into minorUnit in schema dml-chart_xsd Drilldown into majorUnit in schema dml-chart_xsd Drilldown into crossBetween in schema dml-chart_xsd Drilldown into crossesAt in schema dml-chart_xsd Drilldown into crosses in schema dml-chart_xsd Drilldown into crossAx in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into tickLblPos in schema dml-chart_xsd Drilldown into minorTickMark in schema dml-chart_xsd Drilldown into majorTickMark in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into title in schema dml-chart_xsd Drilldown into minorGridlines in schema dml-chart_xsd Drilldown into majorGridlines in schema dml-chart_xsd Drilldown into axPos in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into scaling in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into EG_AxShared in schema dml-chart_xsd Drilldown into CT_ValAx in schema dml-chart_xsdXSD Diagram of valAx in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="valAx" type="CT_ValAx" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Value Axis</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
axId nsA:axId 1 1
scaling nsA:scaling 1 1
delete nsA:delete 0 1
axPos nsA:axPos 1 1
majorGridlines nsA:majorGridlines 0 1
minorGridlines nsA:minorGridlines 0 1
title nsA:title 0 1
numFmt nsA:numFmt 0 1
majorTickMark nsA:majorTickMark 0 1
minorTickMark nsA:minorTickMark 0 1
tickLblPos nsA:tickLblPos 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
crossAx nsA:crossAx 1 1
crosses nsA:crosses 1 1
crossesAt nsA:crossesAt 1 1
crossBetween nsA:crossBetween 0 1
majorUnit nsA:majorUnit 0 1
minorUnit nsA:minorUnit 0 1
dispUnits nsA:dispUnits 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:EG_AxShared 1 1
Collapse Derivation Tree:
