Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: BankAccount
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractAccount
Containing Schema: OFX_Common.xsd
Abstract
Documentation:
The OFX elements BANKACCTFROM and BANKACCTTO are of type "BankAccount"

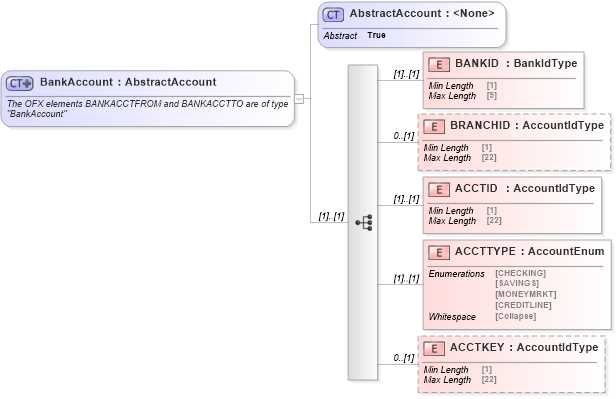

Collapse XSD Schema Diagram:
Drilldown into ACCTKEY in schema ofx_common_xsd Drilldown into ACCTTYPE in schema ofx_common_xsd Drilldown into ACCTID in schema ofx_common_xsd Drilldown into BRANCHID in schema ofx_common_xsd Drilldown into BANKID in schema ofx_common_xsd Drilldown into AbstractAccount in schema ofx_common_xsdXSD Diagram of BankAccount in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="BankAccount">
    <xsd:annotation>
        <xsd:documentation>
        The OFX elements BANKACCTFROM and BANKACCTTO are of type "BankAccount"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractAccount">
            <xsd:sequence>
                <xsd:element name="BANKID" type="ofx:BankIdType" />
                <xsd:element name="BRANCHID" type="ofx:AccountIdType" minOccurs="0" />
                <xsd:element name="ACCTID" type="ofx:AccountIdType" />
                <xsd:element name="ACCTTYPE" type="ofx:AccountEnum" />
                <xsd:element name="ACCTKEY" type="ofx:AccountIdType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BANKID ofx:BANKID (1) (1)
BRANCHID ofx:BRANCHID 0 (1)
ACCTID ofx:ACCTID (1) (1)
ACCTTYPE ofx:ACCTTYPE (1) (1)
ACCTKEY ofx:ACCTKEY 0 (1)
Collapse Derivation Tree:
Collapse References:
ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROMofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTFROM, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO, ofx:BANKACCTTO,
