Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: BANKACCTFROM
Namespace: http://ofx.net/types/2003/04
Type: ofx:BankAccount
Containing Schema: OFX_Banking_Messages.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

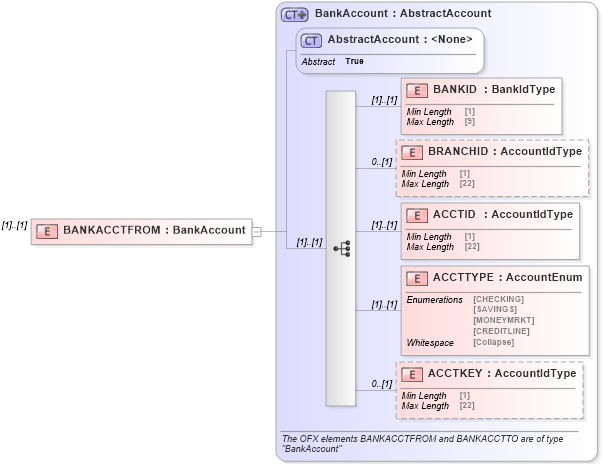

Collapse XSD Schema Diagram:
Drilldown into ACCTKEY in schema ofx_common_xsd Drilldown into ACCTTYPE in schema ofx_common_xsd Drilldown into ACCTID in schema ofx_common_xsd Drilldown into BRANCHID in schema ofx_common_xsd Drilldown into BANKID in schema ofx_common_xsd Drilldown into AbstractAccount in schema ofx_common_xsd Drilldown into BankAccount in schema ofx_common_xsdXSD Diagram of BANKACCTFROM in schema ofx_banking_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="BANKACCTFROM" type="ofx:BankAccount" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BANKID ofx:BANKID (1) (1)
BRANCHID ofx:BRANCHID 0 (1)
ACCTID ofx:ACCTID (1) (1)
ACCTTYPE ofx:ACCTTYPE (1) (1)
ACCTKEY ofx:ACCTKEY 0 (1)
Collapse Derivation Tree:
