Definition Type: ComplexType
Name: ImageMessageSetV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractMessageSetVersion
Containing Schema: OFX_Profile.xsd
Abstract
Documentation:
The OFX element "IMAGEMSGSETV1" is of type "ImageMessageSetV1"

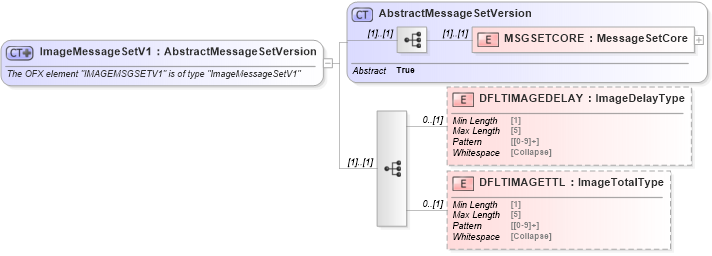

Collapse XSD Schema Diagram:
Drilldown into DFLTIMAGETTL in schema ofx_profile_xsd Drilldown into DFLTIMAGEDELAY in schema ofx_profile_xsd Drilldown into MSGSETCORE in schema ofx_profile_xsd Drilldown into AbstractMessageSetVersion in schema ofx_profile_xsdXSD Diagram of ImageMessageSetV1 in schema ofx_profile_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="ImageMessageSetV1">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "IMAGEMSGSETV1" is of type "ImageMessageSetV1"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractMessageSetVersion">
            <xsd:sequence>
                <xsd:element name="DFLTIMAGEDELAY" type="ofx:ImageDelayType" minOccurs="0" />
                <xsd:element name="DFLTIMAGETTL" type="ofx:ImageTotalType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSGSETCORE ofx:MSGSETCORE (1) (1)
DFLTIMAGEDELAY ofx:DFLTIMAGEDELAY 0 (1)
DFLTIMAGETTL ofx:DFLTIMAGETTL 0 (1)
Collapse Derivation Tree:
Collapse References:
ofx:IMAGEMSGSETV1
