Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: InterResponse
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractInterResponse
Containing Schema: OFX_InterTransfer_Messages.xsd
Abstract
Documentation:
The OFX element "INTERRS" is of type "InterResponse"

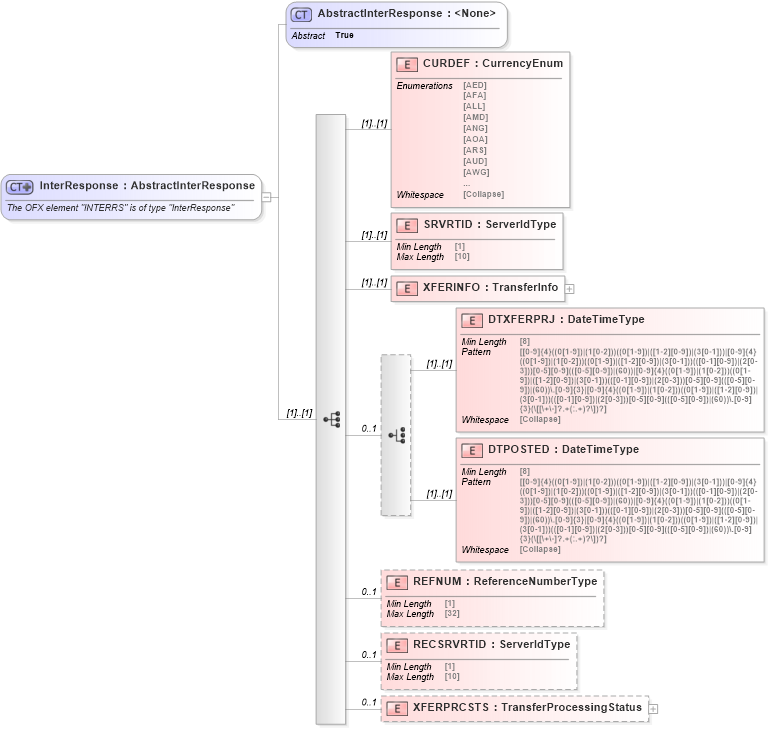

Collapse XSD Schema Diagram:
Drilldown into XFERPRCSTS in schema ofx_intertransfer_messages_xsd Drilldown into RECSRVRTID in schema ofx_intertransfer_messages_xsd Drilldown into REFNUM in schema ofx_intertransfer_messages_xsd Drilldown into DTPOSTED in schema ofx_intertransfer_messages_xsd Drilldown into DTXFERPRJ in schema ofx_intertransfer_messages_xsd Drilldown into XFERINFO in schema ofx_intertransfer_messages_xsd Drilldown into SRVRTID in schema ofx_intertransfer_messages_xsd Drilldown into CURDEF in schema ofx_intertransfer_messages_xsd Drilldown into AbstractInterResponse in schema ofx_intertransfer_messages_xsdXSD Diagram of InterResponse in schema ofx_intertransfer_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="InterResponse">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "INTERRS" is of type "InterResponse"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractInterResponse">
            <xsd:sequence>
                <xsd:element name="CURDEF" type="ofx:CurrencyEnum" />
                <xsd:element name="SRVRTID" type="ofx:ServerIdType" />
                <xsd:element name="XFERINFO" type="ofx:TransferInfo" />
                <xsd:choice minOccurs="0" maxOccurs="1">
                    <xsd:element name="DTXFERPRJ" type="ofx:DateTimeType" />
                    <xsd:element name="DTPOSTED" type="ofx:DateTimeType" />
                </xsd:choice>
                <xsd:element name="REFNUM" type="ofx:ReferenceNumberType" minOccurs="0" maxOccurs="1" />
                <xsd:element name="RECSRVRTID" type="ofx:ServerIdType" minOccurs="0" maxOccurs="1" />
                <xsd:element name="XFERPRCSTS" type="ofx:TransferProcessingStatus" minOccurs="0" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CURDEF ofx:CURDEF (1) (1)
SRVRTID ofx:SRVRTID (1) (1)
XFERINFO ofx:XFERINFO (1) (1)
DTXFERPRJ ofx:DTXFERPRJ (1) (1)
DTPOSTED ofx:DTPOSTED (1) (1)
REFNUM ofx:REFNUM 0 1
RECSRVRTID ofx:RECSRVRTID 0 1
XFERPRCSTS ofx:XFERPRCSTS 0 1
Collapse Derivation Tree:
Collapse References:
ofx:INTERRS, ofx:INTERRS, ofx:INTERRS
