Definition Type: Element
Name: INTERTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:InterTransactionRequest
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

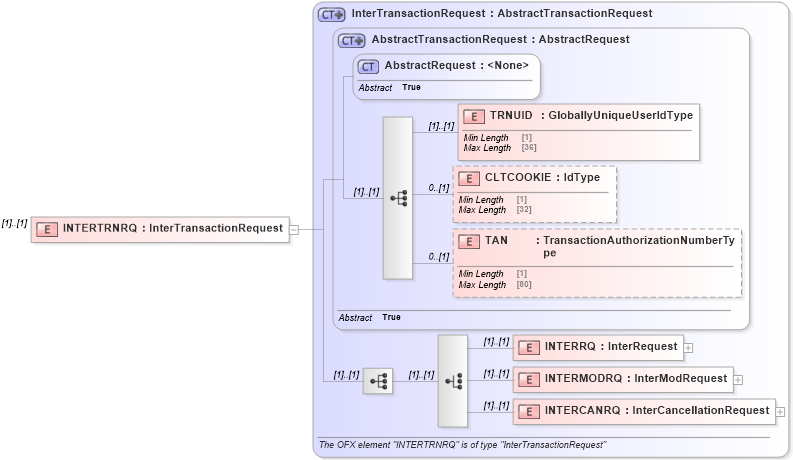

Collapse XSD Schema Diagram:
Drilldown into INTERCANRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into INTERMODRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into INTERRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsd Drilldown into InterTransactionRequest in schema ofx_intertransfer_message_wrappers_xsdXSD Diagram of INTERTRNRQ in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="INTERTRNRQ" type="ofx:InterTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
INTERRQ ofx:INTERRQ (1) (1)
INTERMODRQ ofx:INTERMODRQ (1) (1)
INTERCANRQ ofx:INTERCANRQ (1) (1)
Collapse Derivation Tree:
