Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: AbstractTransactionRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractRequest
Containing Schema: OFX_Common.xsd
Abstract True
Collapse XSD Schema Diagram:

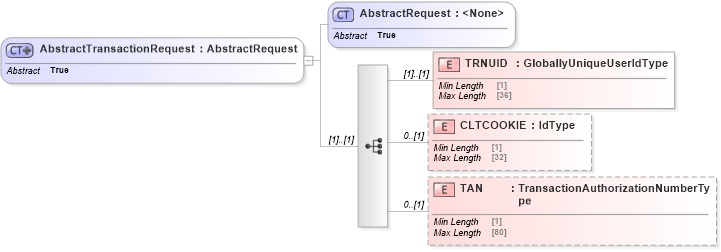

Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsdXSD Diagram of AbstractTransactionRequest in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="AbstractTransactionRequest" abstract="true">
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractRequest">
            <xsd:sequence>
                <xsd:element name="TRNUID" type="ofx:GloballyUniqueUserIdType" />
                <xsd:element name="CLTCOOKIE" type="ofx:IdType" minOccurs="0" />
                <xsd:element name="TAN" type="ofx:TransactionAuthorizationNumberType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
Collapse Derivation Tree:
Collapse References:
ofx:AccountInfoTransactionRequest, ofx:AccountTransactionRequest, ofx:AmortizationTransactionRequest, ofx:BankMailTransactionRequest, ofx:BillStatusModTransactionRequest, ofx:BillTableStructureTransactionRequest, ofx:ChallengeTransactionRequest, ofx:ChangeUserInfoTransactionRequest, ofx:CreditCardStatementEndTransactionRequest, ofx:CreditCardStatementTransactionRequest, ofx:EnrollTransactionRequest, ofx:FindBillerTransactionRequest, ofx:GetMimeTransactionRequest, ofx:ImageTransactionRequest, ofx:InterTransactionRequest, ofx:IntraTransactionRequest, ofx:InvestmentMailTransactionRequest, ofx:InvestmentStatementEndTransactionRequest, ofx:InvestmentStatementTransactionRequest, ofx:LoanMailTransactionRequest, ofx:LoanStatementEndTransactionRequest, ofx:LoanStatementTransactionRequest, ofx:MailTransactionRequest, ofx:MFAChallengeTransactionRequest, ofx:PayeeTransactionRequest, ofx:PaymentInquiryTransactionRequest, ofx:PaymentMailTransactionRequest, ofx:PaymentTransactionRequest, ofx:PinChangeTransactionRequest, ofx:PresentmentDetailTransactionRequest, ofx:PresentmentGroupAccountInfoTransactionRequest, ofx:PresentmentListTransactionRequest, ofx:PresentmentMailTransactionRequest, ofx:PresentmentNotifyTransactionRequest, ofx:ProfileTransactionRequest, ofx:RecurringInterTransactionRequest, ofx:RecurringIntraTransactionRequest, ofx:RecurringPaymentTransactionRequest, ofx:SecurityListTransactionRequest, ofx:StatementEndTransactionRequest, ofx:StatementTransactionRequest, ofx:StopCheckTransactionRequest, ofx:TransactionRequest, ofx:WireTransactionRequest
