Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: STPCHKTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:StopCheckTransactionRequest
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

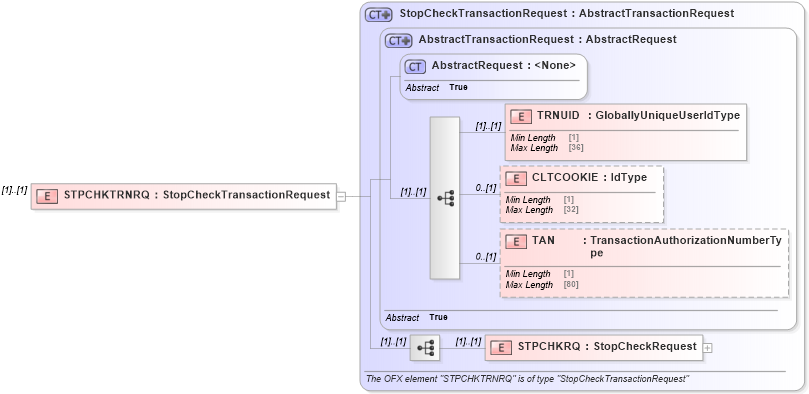

Collapse XSD Schema Diagram:
Drilldown into STPCHKRQ in schema ofx_banking_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsd Drilldown into StopCheckTransactionRequest in schema ofx_banking_message_wrappers_xsdXSD Diagram of STPCHKTRNRQ in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="STPCHKTRNRQ" type="ofx:StopCheckTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
STPCHKRQ ofx:STPCHKRQ (1) (1)
Collapse Derivation Tree:
