Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: RECINTERTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:RecurringInterTransactionRequest
Containing Schema: OFX3_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

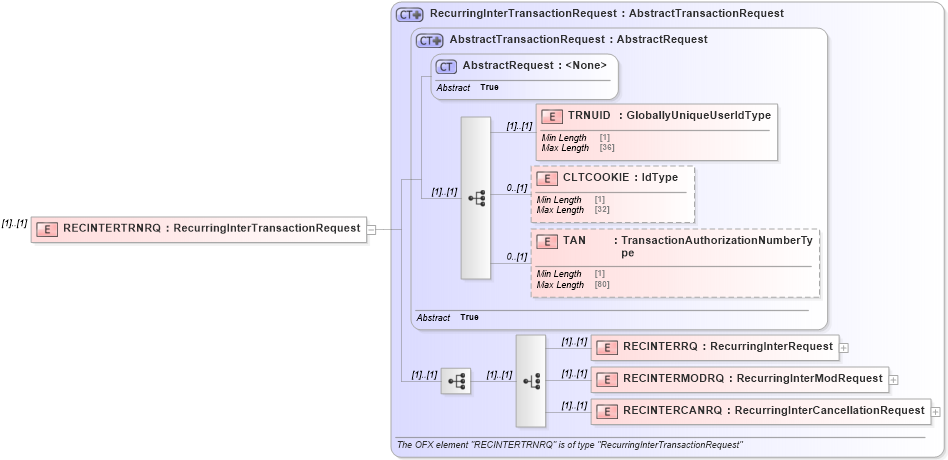

Collapse XSD Schema Diagram:
Drilldown into RECINTERCANRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERMODRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsd Drilldown into RecurringInterTransactionRequest in schema ofx_intertransfer_message_wrappers_xsdXSD Diagram of RECINTERTRNRQ in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="RECINTERTRNRQ" type="ofx:RecurringInterTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
RECINTERRQ ofx:RECINTERRQ (1) (1)
RECINTERMODRQ ofx:RECINTERMODRQ (1) (1)
RECINTERCANRQ ofx:RECINTERCANRQ (1) (1)
Collapse Derivation Tree:
