Definition Type: ComplexType
Name: RecurringInterTransactionRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractTransactionRequest
Containing Schema: OFX_InterTransfer_Message_Wrappers.xsd
Abstract
Documentation:
The OFX element "RECINTERTRNRQ" is of type "RecurringInterTransactionRequest"

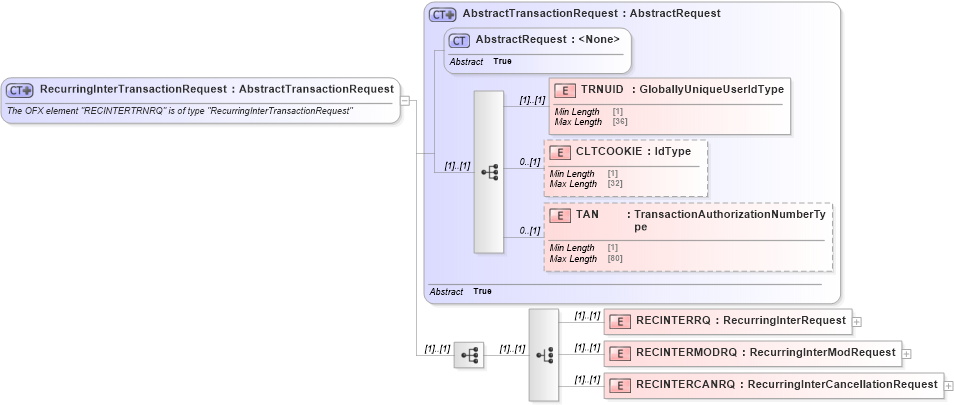

Collapse XSD Schema Diagram:
Drilldown into RECINTERCANRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERMODRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into RECINTERRQ in schema ofx_intertransfer_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsdXSD Diagram of RecurringInterTransactionRequest in schema ofx_intertransfer_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="RecurringInterTransactionRequest">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "RECINTERTRNRQ" is of type "RecurringInterTransactionRequest"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractTransactionRequest">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element name="RECINTERRQ" type="ofx:RecurringInterRequest" />
                    <xsd:element name="RECINTERMODRQ" type="ofx:RecurringInterModRequest" />
                    <xsd:element name="RECINTERCANRQ" type="ofx:RecurringInterCancellationRequest" />
                </xsd:choice>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
RECINTERRQ ofx:RECINTERRQ (1) (1)
RECINTERMODRQ ofx:RECINTERMODRQ (1) (1)
RECINTERCANRQ ofx:RECINTERCANRQ (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:RECINTERTRNRQ, ofx:RECINTERTRNRQ, ofx:RECINTERTRNRQ, ofx:RECINTERTRNRQ
