Definition Type: Element
Name: PMTMAILTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:PaymentMailTransactionRequest
Containing Schema: OFX_BillPay_Message_Wrappers.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

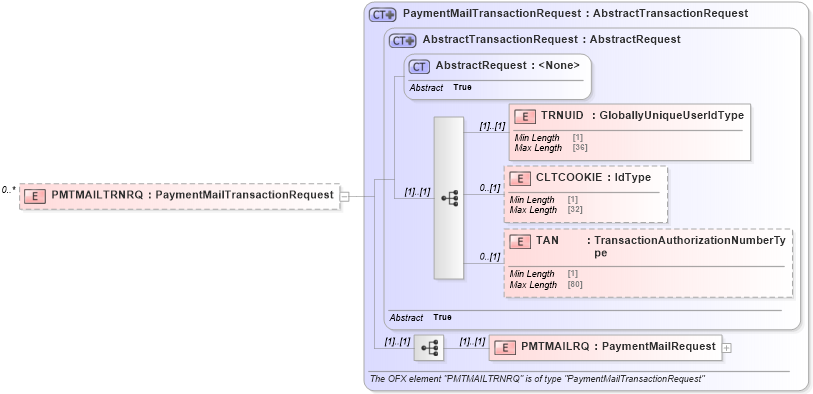

Collapse XSD Schema Diagram:
Drilldown into PMTMAILRQ in schema ofx_billpay_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsd Drilldown into PaymentMailTransactionRequest in schema ofx_billpay_message_wrappers_xsdXSD Diagram of PMTMAILTRNRQ in schema ofx_billpay_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="PMTMAILTRNRQ" type="ofx:PaymentMailTransactionRequest" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
PMTMAILRQ ofx:PMTMAILRQ (1) (1)
Collapse Derivation Tree:
