Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: RecurringIntraTransactionRequest
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractTransactionRequest
Containing Schema: OFX_Banking_Message_Wrappers.xsd
Abstract
Documentation:
The OFX element "RECINTRATRNRQ" is of type "RecurringIntraTransactionRequest"

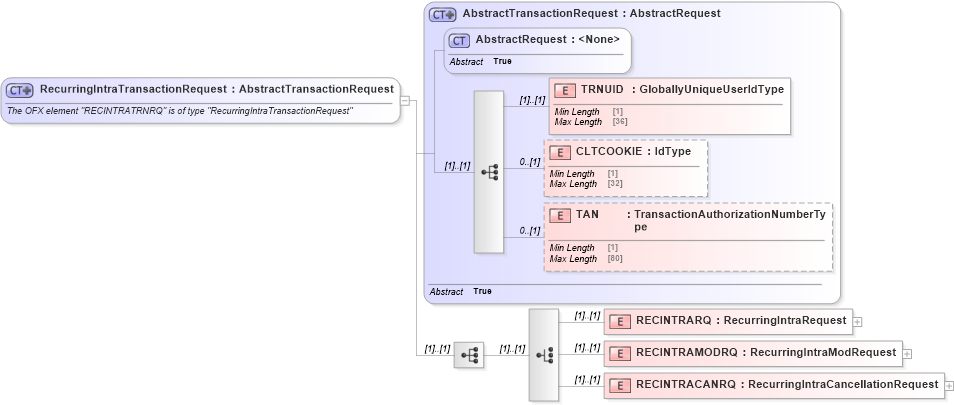

Collapse XSD Schema Diagram:
Drilldown into RECINTRACANRQ in schema ofx_banking_message_wrappers_xsd Drilldown into RECINTRAMODRQ in schema ofx_banking_message_wrappers_xsd Drilldown into RECINTRARQ in schema ofx_banking_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsdXSD Diagram of RecurringIntraTransactionRequest in schema ofx_banking_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="RecurringIntraTransactionRequest">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "RECINTRATRNRQ" is of type "RecurringIntraTransactionRequest"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractTransactionRequest">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:element name="RECINTRARQ" type="ofx:RecurringIntraRequest" />
                    <xsd:element name="RECINTRAMODRQ" type="ofx:RecurringIntraModRequest" />
                    <xsd:element name="RECINTRACANRQ" type="ofx:RecurringIntraCancellationRequest" />
                </xsd:choice>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
RECINTRARQ ofx:RECINTRARQ (1) (1)
RECINTRAMODRQ ofx:RECINTRAMODRQ (1) (1)
RECINTRACANRQ ofx:RECINTRACANRQ (1) (1)
Collapse Derivation Tree:
Collapse References:
ofx:RECINTRATRNRQ, ofx:RECINTRATRNRQ, ofx:RECINTRATRNRQ, ofx:RECINTRATRNRQ
