Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: PMTTRNRQ
Namespace: http://ofx.net/types/2003/04
Type: ofx:PaymentTransactionRequest
Containing Schema: OFX2_Protocol.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

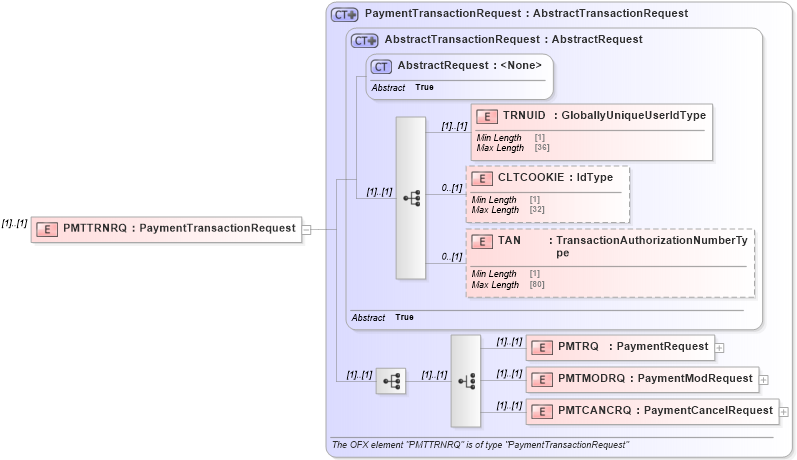

Collapse XSD Schema Diagram:
Drilldown into PMTCANCRQ in schema ofx_billpay_message_wrappers_xsd Drilldown into PMTMODRQ in schema ofx_billpay_message_wrappers_xsd Drilldown into PMTRQ in schema ofx_billpay_message_wrappers_xsd Drilldown into TAN in schema ofx_common_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractRequest in schema ofx_common_xsd Drilldown into AbstractTransactionRequest in schema ofx_common_xsd Drilldown into PaymentTransactionRequest in schema ofx_billpay_message_wrappers_xsdXSD Diagram of PMTTRNRQ in schema ofx2_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="PMTTRNRQ" type="ofx:PaymentTransactionRequest" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
TAN ofx:TAN 0 (1)
PMTRQ ofx:PMTRQ (1) (1)
PMTMODRQ ofx:PMTMODRQ (1) (1)
PMTCANCRQ ofx:PMTCANCRQ (1) (1)
Collapse Derivation Tree:
