Documentation for OFX - Open Financial Exchange
Definition Type: ComplexType
Name: PresentmentAccount
Namespace: http://ofx.net/types/2003/04
Type: ofx:AbstractAccount
Containing Schema: OFX_Common.xsd
Abstract
Documentation:
The OFX element "PRESACCTFROM" is of type "PresentmentAccount"

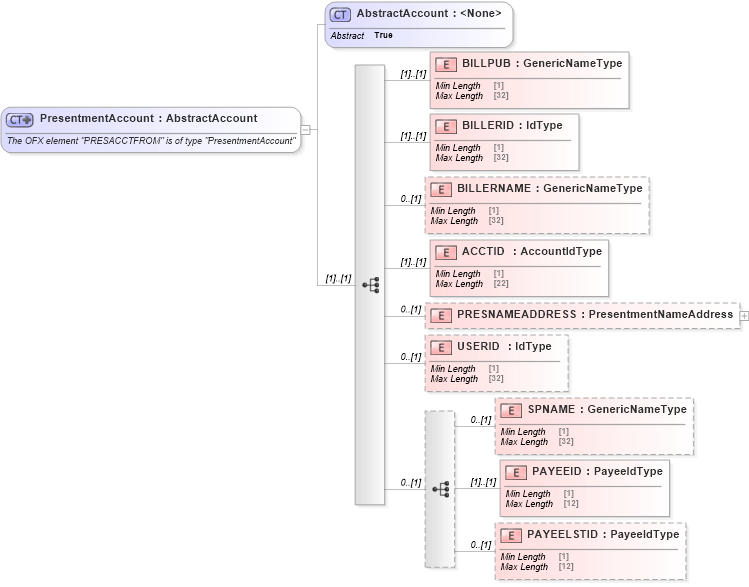

Collapse XSD Schema Diagram:
Drilldown into PAYEELSTID in schema ofx_common_xsd Drilldown into PAYEEID in schema ofx_common_xsd Drilldown into SPNAME in schema ofx_common_xsd Drilldown into USERID in schema ofx_common_xsd Drilldown into PRESNAMEADDRESS in schema ofx_common_xsd Drilldown into ACCTID in schema ofx_common_xsd Drilldown into BILLERNAME in schema ofx_common_xsd Drilldown into BILLERID in schema ofx_common_xsd Drilldown into BILLPUB in schema ofx_common_xsd Drilldown into AbstractAccount in schema ofx_common_xsdXSD Diagram of PresentmentAccount in schema ofx_common_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:complexType name="PresentmentAccount">
    <xsd:annotation>
        <xsd:documentation>
        The OFX element "PRESACCTFROM" is of type "PresentmentAccount"
      </xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ofx:AbstractAccount">
            <xsd:sequence>
                <xsd:element name="BILLPUB" type="ofx:GenericNameType" />
                <xsd:element name="BILLERID" type="ofx:IdType" />
                <xsd:element name="BILLERNAME" type="ofx:GenericNameType" minOccurs="0" />
                <xsd:element name="ACCTID" type="ofx:AccountIdType" />
                <xsd:element name="PRESNAMEADDRESS" type="ofx:PresentmentNameAddress" minOccurs="0" />
                <xsd:element name="USERID" type="ofx:IdType" minOccurs="0" />
                <xsd:sequence minOccurs="0">
                    <xsd:element name="SPNAME" type="ofx:GenericNameType" minOccurs="0" />
                    <xsd:element name="PAYEEID" type="ofx:PayeeIdType" />
                    <xsd:element name="PAYEELSTID" type="ofx:PayeeIdType" minOccurs="0" />
                </xsd:sequence>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BILLPUB ofx:BILLPUB (1) (1)
BILLERID ofx:BILLERID (1) (1)
BILLERNAME ofx:BILLERNAME 0 (1)
ACCTID ofx:ACCTID (1) (1)
PRESNAMEADDRESS ofx:PRESNAMEADDRESS 0 (1)
USERID ofx:USERID 0 (1)
SPNAME ofx:SPNAME 0 (1)
PAYEEID ofx:PAYEEID (1) (1)
PAYEELSTID ofx:PAYEELSTID 0 (1)
Collapse Derivation Tree:
Collapse References:
ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROMofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTFROM, ofx:PRESACCTTO, ofx:PRESACCTTO,
