Definition Type: Element
Name: RECPMTTRNRS
Namespace: http://ofx.net/types/2003/04
Type: ofx:RecurringPaymentTransactionResponse
Containing Schema: OFX_BillPay_Message_Wrappers.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

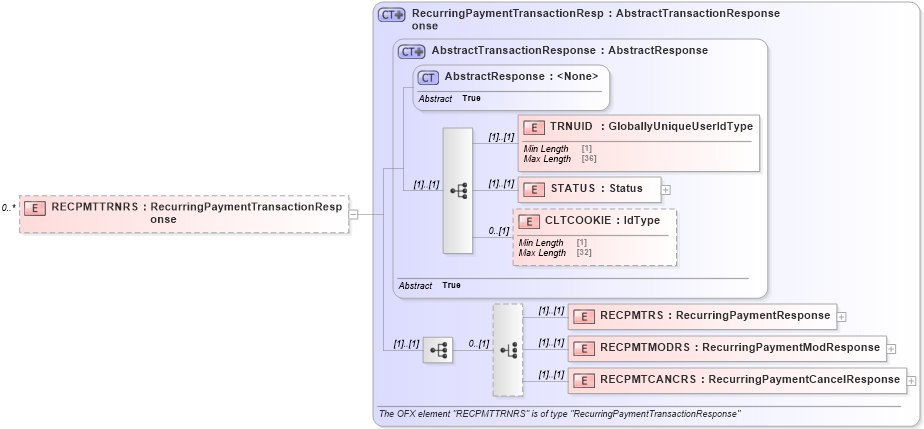

Collapse XSD Schema Diagram:
Drilldown into RECPMTCANCRS in schema ofx_billpay_message_wrappers_xsd Drilldown into RECPMTMODRS in schema ofx_billpay_message_wrappers_xsd Drilldown into RECPMTRS in schema ofx_billpay_message_wrappers_xsd Drilldown into CLTCOOKIE in schema ofx_common_xsd Drilldown into STATUS in schema ofx_common_xsd Drilldown into TRNUID in schema ofx_common_xsd Drilldown into AbstractResponse in schema ofx_common_xsd Drilldown into AbstractTransactionResponse in schema ofx_common_xsd Drilldown into RecurringPaymentTransactionResponse in schema ofx_billpay_message_wrappers_xsdXSD Diagram of RECPMTTRNRS in schema ofx_billpay_message_wrappers_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="RECPMTTRNRS" type="ofx:RecurringPaymentTransactionResponse" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TRNUID ofx:TRNUID (1) (1)
STATUS ofx:STATUS (1) (1)
CLTCOOKIE ofx:CLTCOOKIE 0 (1)
RECPMTRS ofx:RECPMTRS (1) (1)
RECPMTMODRS ofx:RECPMTMODRS (1) (1)
RECPMTCANCRS ofx:RECPMTCANCRS (1) (1)
Collapse Derivation Tree:
