Documentation for OFX - Open Financial Exchange
Definition Type: Element
Name: SIGNONMSGSRQV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonRequestMessageSetV1
Containing Schema: OFX3_Protocol_dotNET.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

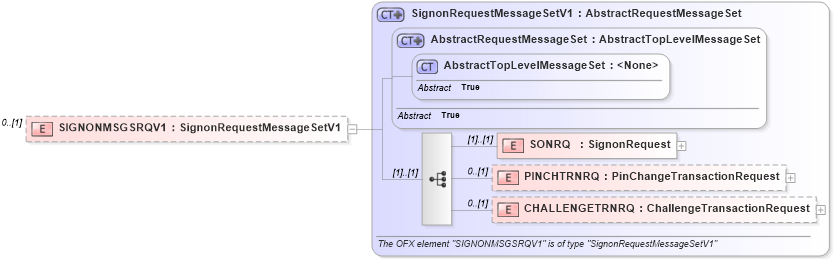

Collapse XSD Schema Diagram:
Drilldown into CHALLENGETRNRQ in schema ofx3_protocol_dotnet_xsd Drilldown into PINCHTRNRQ in schema ofx3_protocol_dotnet_xsd Drilldown into SONRQ in schema ofx3_protocol_dotnet_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx3_protocol_dotnet_xsd Drilldown into AbstractRequestMessageSet in schema ofx3_protocol_dotnet_xsd Drilldown into SignonRequestMessageSetV1 in schema ofx3_protocol_dotnet_xsdXSD Diagram of SIGNONMSGSRQV1 in schema ofx3_protocol_dotnet_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="SIGNONMSGSRQV1" type="ofx:SignonRequestMessageSetV1" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SONRQ ofx:SONRQ (1) (1)
PINCHTRNRQ ofx:PINCHTRNRQ 0 (1)
CHALLENGETRNRQ ofx:CHALLENGETRNRQ 0 (1)
Collapse Derivation Tree:
