Definition Type: Element
Name: SIGNONMSGSRSV1
Namespace: http://ofx.net/types/2003/04
Type: ofx:SignonResponseMessageSetV1
Containing Schema: OFX3_Protocol.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

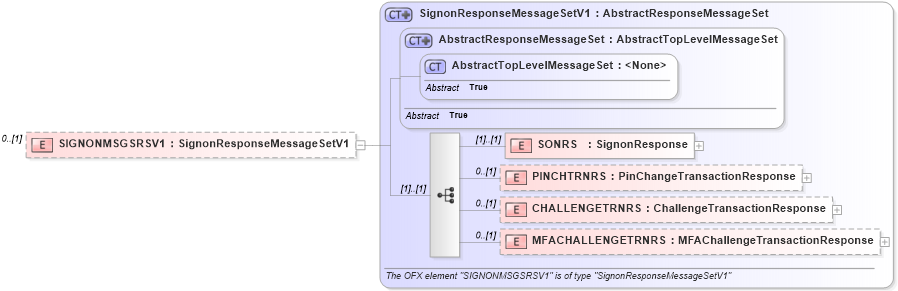

Collapse XSD Schema Diagram:
Drilldown into MFACHALLENGETRNRS in schema ofx3_protocol_xsd Drilldown into CHALLENGETRNRS in schema ofx3_protocol_xsd Drilldown into PINCHTRNRS in schema ofx3_protocol_xsd Drilldown into SONRS in schema ofx3_protocol_xsd Drilldown into AbstractTopLevelMessageSet in schema ofx3_protocol_xsd Drilldown into AbstractResponseMessageSet in schema ofx3_protocol_xsd Drilldown into SignonResponseMessageSetV1 in schema ofx3_protocol_xsdXSD Diagram of SIGNONMSGSRSV1 in schema ofx3_protocol_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="SIGNONMSGSRSV1" type="ofx:SignonResponseMessageSetV1" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SONRS ofx:SONRS (1) (1)
PINCHTRNRS ofx:PINCHTRNRS 0 (1)
CHALLENGETRNRS ofx:CHALLENGETRNRS 0 (1)
MFACHALLENGETRNRS ofx:MFACHALLENGETRNRS 0 (1)
Collapse Derivation Tree:
