Definition Type: Element
Name: STPCHKNUM
Namespace: http://ofx.net/types/2003/04
Type: ofx:StopCheckNumber
Containing Schema: OFX_Banking_Messages.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

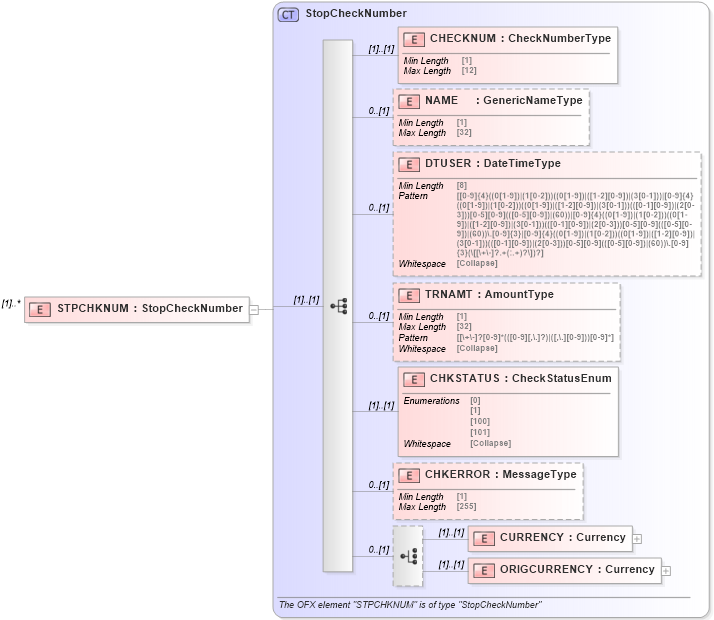

Drilldown into ORIGCURRENCY in schema ofx_banking_xsd Drilldown into CURRENCY in schema ofx_banking_xsd Drilldown into CHKERROR in schema ofx_banking_xsd Drilldown into CHKSTATUS in schema ofx_banking_xsd Drilldown into TRNAMT in schema ofx_banking_xsd Drilldown into DTUSER in schema ofx_banking_xsd Drilldown into NAME in schema ofx_banking_xsd Drilldown into CHECKNUM in schema ofx_banking_xsd Drilldown into StopCheckNumber in schema ofx_banking_xsdXSD Diagram of STPCHKNUM in schema ofx_banking_messages_xsd (OFX - Open Financial Exchange)
Collapse XSD Schema Code:
<xsd:element name="STPCHKNUM" type="ofx:StopCheckNumber" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CHECKNUM ofx:CHECKNUM (1) (1)
NAME ofx:NAME 0 (1)
DTUSER ofx:DTUSER 0 (1)
TRNAMT ofx:TRNAMT 0 (1)
CHKSTATUS ofx:CHKSTATUS (1) (1)
CHKERROR ofx:CHKERROR 0 (1)
CURRENCY ofx:CURRENCY (1) (1)
ORIGCURRENCY ofx:ORIGCURRENCY (1) (1)
Collapse Derivation Tree:
