Definition Type: Element
Name: Bale
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

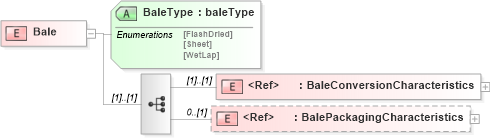

Collapse XSD Schema Diagram:
Drilldown into BalePackagingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into BaleConversionCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into BaleType in schema papinetcommondefsv2r40_xsdXSD Diagram of Bale in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Bale">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="BaleConversionCharacteristics" />
            <xs:element ref="BalePackagingCharacteristics" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="BaleType" type="baleType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BaleConversionCharacteristics pn:BaleConversionCharacteristics (1) (1)
BalePackagingCharacteristics pn:BalePackagingCharacteristics 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
BaleType pn:BaleType Required
