Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: BalePackagingCharacteristics
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

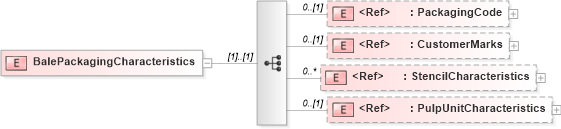

Collapse XSD Schema Diagram:
Drilldown into PulpUnitCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into StencilCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into CustomerMarks in schema papinetcommondefsv2r40_xsd Drilldown into PackagingCode in schema papinetcommondefsv2r40_xsdXSD Diagram of BalePackagingCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="BalePackagingCharacteristics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PackagingCode" minOccurs="0" />
            <xs:element ref="CustomerMarks" minOccurs="0" />
            <xs:element ref="StencilCharacteristics" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PulpUnitCharacteristics" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PackagingCode pn:PackagingCode 0 (1)
CustomerMarks pn:CustomerMarks 0 (1)
StencilCharacteristics pn:StencilCharacteristics 0 unbounded
PulpUnitCharacteristics pn:PulpUnitCharacteristics 0 (1)
