Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: Calendar
Namespace: http://www.papinet.org/v2r40
Containing Schema: CalendarV2R40.xsd
Abstract

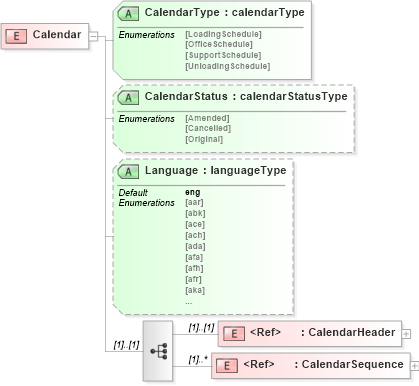

Collapse XSD Schema Diagram:
Drilldown into CalendarSequence in schema calendarv2r40_xsd Drilldown into CalendarHeader in schema calendarv2r40_xsd Drilldown into Language in schema calendarv2r40_xsd Drilldown into CalendarStatus in schema calendarv2r40_xsd Drilldown into CalendarType in schema calendarv2r40_xsdXSD Diagram of Calendar in schema calendarv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Calendar">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CalendarHeader" />
            <xs:element ref="CalendarSequence" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="CalendarType" type="calendarType" use="required" />
        <xs:attribute name="CalendarStatus" type="calendarStatusType" use="optional" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CalendarHeader pn:CalendarHeader (1) (1)
CalendarSequence pn:CalendarSequence (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
CalendarType pn:CalendarType Required
CalendarStatus pn:CalendarStatus Optional
Language pn:Language eng (Optional)
