Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: CallOff
Namespace: http://www.papinet.org/v2r40
Containing Schema: CallOffV2R40.xsd
Abstract

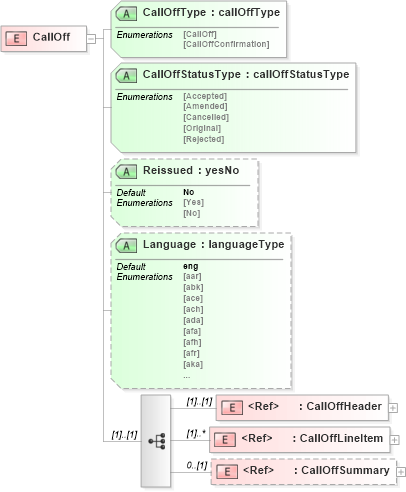

Collapse XSD Schema Diagram:
Drilldown into CallOffSummary in schema calloffv2r40_xsd Drilldown into CallOffLineItem in schema calloffv2r40_xsd Drilldown into CallOffHeader in schema calloffv2r40_xsd Drilldown into Language in schema calloffv2r40_xsd Drilldown into Reissued in schema calloffv2r40_xsd Drilldown into CallOffStatusType in schema calloffv2r40_xsd Drilldown into CallOffType in schema calloffv2r40_xsdXSD Diagram of CallOff in schema calloffv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CallOff">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CallOffHeader" />
            <xs:element ref="CallOffLineItem" maxOccurs="unbounded" />
            <xs:element ref="CallOffSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="CallOffType" type="callOffType" use="required" />
        <xs:attribute name="CallOffStatusType" type="callOffStatusType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CallOffHeader pn:CallOffHeader (1) (1)
CallOffLineItem pn:CallOffLineItem (1) unbounded
CallOffSummary pn:CallOffSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CallOffType pn:CallOffType Required
CallOffStatusType pn:CallOffStatusType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
