Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: CallOffHeader
Namespace: http://www.papinet.org/v2r40
Containing Schema: CallOffV2R40.xsd
Abstract

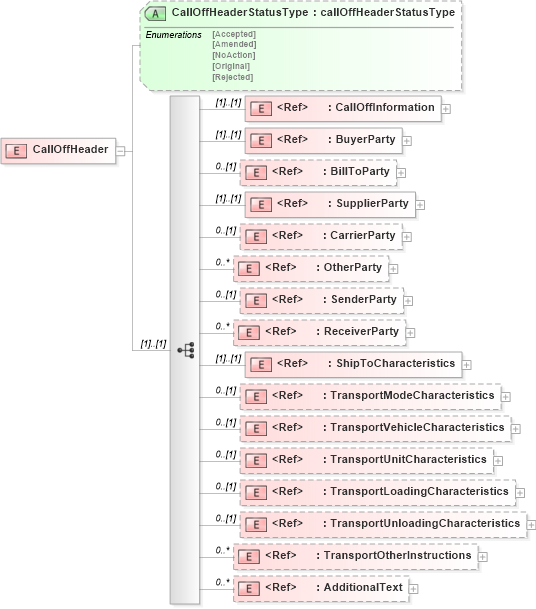

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into TransportOtherInstructions in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnloadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportLoadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnitCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportVehicleCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportModeCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ShipToCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into ReceiverParty in schema papinetcommondefsv2r40_xsd Drilldown into SenderParty in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into CarrierParty in schema papinetcommondefsv2r40_xsd Drilldown into SupplierParty in schema papinetcommondefsv2r40_xsd Drilldown into BillToParty in schema papinetcommondefsv2r40_xsd Drilldown into BuyerParty in schema papinetcommondefsv2r40_xsd Drilldown into CallOffInformation in schema papinetcommondefsv2r40_xsd Drilldown into CallOffHeaderStatusType in schema calloffv2r40_xsdXSD Diagram of CallOffHeader in schema calloffv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CallOffHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CallOffInformation" />
            <xs:element ref="BuyerParty" />
            <xs:element ref="BillToParty" minOccurs="0" />
            <xs:element ref="SupplierParty" />
            <xs:element ref="CarrierParty" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="SenderParty" minOccurs="0" />
            <xs:element ref="ReceiverParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ShipToCharacteristics" />
            <xs:element ref="TransportModeCharacteristics" minOccurs="0" />
            <xs:element ref="TransportVehicleCharacteristics" minOccurs="0" />
            <xs:element ref="TransportUnitCharacteristics" minOccurs="0" />
            <xs:element ref="TransportLoadingCharacteristics" minOccurs="0" />
            <xs:element ref="TransportUnloadingCharacteristics" minOccurs="0" />
            <xs:element ref="TransportOtherInstructions" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="CallOffHeaderStatusType" type="callOffHeaderStatusType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CallOffInformation pn:CallOffInformation (1) (1)
BuyerParty pn:BuyerParty (1) (1)
BillToParty pn:BillToParty 0 (1)
SupplierParty pn:SupplierParty (1) (1)
CarrierParty pn:CarrierParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
SenderParty pn:SenderParty 0 (1)
ReceiverParty pn:ReceiverParty 0 unbounded
ShipToCharacteristics pn:ShipToCharacteristics (1) (1)
TransportModeCharacteristics pn:TransportModeCharacteristics 0 (1)
TransportVehicleCharacteristics pn:TransportVehicleCharacteristics 0 (1)
TransportUnitCharacteristics pn:TransportUnitCharacteristics 0 (1)
TransportLoadingCharacteristics pn:TransportLoadingCharacteristics 0 (1)
TransportUnloadingCharacteristics pn:TransportUnloadingCharacteristics 0 (1)
TransportOtherInstructions pn:TransportOtherInstructions 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
CallOffHeaderStatusType pn:CallOffHeaderStatusType (Optional)
