Definition Type: Element
Name: Complaint
Namespace: http://www.papinet.org/v2r40
Containing Schema: ComplaintV2R40.xsd
Abstract

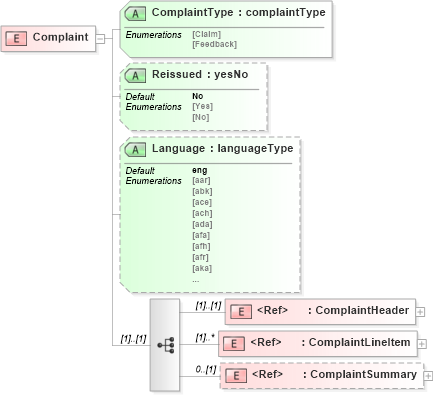

Collapse XSD Schema Diagram:
Drilldown into ComplaintSummary in schema complaintv2r40_xsd Drilldown into ComplaintLineItem in schema complaintv2r40_xsd Drilldown into ComplaintHeader in schema complaintv2r40_xsd Drilldown into Language in schema complaintv2r40_xsd Drilldown into Reissued in schema complaintv2r40_xsd Drilldown into ComplaintType in schema complaintv2r40_xsdXSD Diagram of Complaint in schema complaintv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Complaint">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ComplaintHeader" />
            <xs:element ref="ComplaintLineItem" maxOccurs="unbounded" />
            <xs:element ref="ComplaintSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ComplaintType" type="complaintType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComplaintHeader pn:ComplaintHeader (1) (1)
ComplaintLineItem pn:ComplaintLineItem (1) unbounded
ComplaintSummary pn:ComplaintSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ComplaintType pn:ComplaintType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
