Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ComplaintResponse
Namespace: http://www.papinet.org/v2r40
Containing Schema: ComplaintResponseV2R40.xsd
Abstract

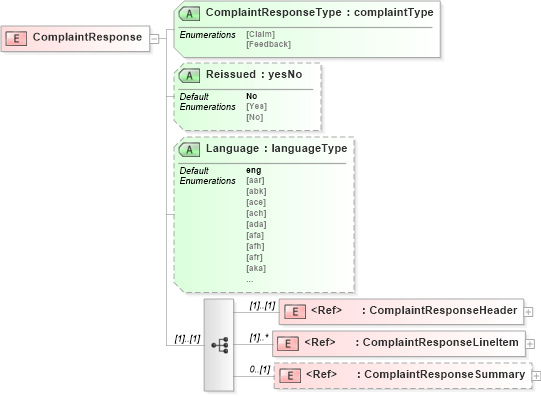

Collapse XSD Schema Diagram:
Drilldown into ComplaintResponseSummary in schema complaintresponsev2r40_xsd Drilldown into ComplaintResponseLineItem in schema complaintresponsev2r40_xsd Drilldown into ComplaintResponseHeader in schema complaintresponsev2r40_xsd Drilldown into Language in schema complaintresponsev2r40_xsd Drilldown into Reissued in schema complaintresponsev2r40_xsd Drilldown into ComplaintResponseType in schema complaintresponsev2r40_xsdXSD Diagram of ComplaintResponse in schema complaintresponsev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ComplaintResponse">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ComplaintResponseHeader" />
            <xs:element ref="ComplaintResponseLineItem" maxOccurs="unbounded" />
            <xs:element ref="ComplaintResponseSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ComplaintResponseType" type="complaintType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComplaintResponseHeader pn:ComplaintResponseHeader (1) (1)
ComplaintResponseLineItem pn:ComplaintResponseLineItem (1) unbounded
ComplaintResponseSummary pn:ComplaintResponseSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ComplaintResponseType pn:ComplaintResponseType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
