Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ComplaintResponseLineItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: ComplaintResponseV2R40.xsd
Abstract

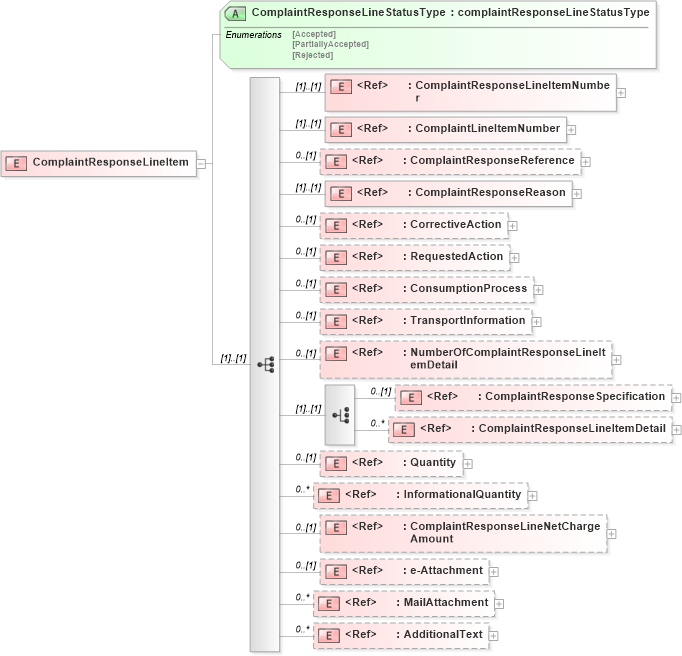

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into MailAttachment in schema papinetcommondefsv2r40_xsd Drilldown into e-Attachment in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseLineNetChargeAmount in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseLineItemDetail in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseSpecification in schema papinetcommondefsv2r40_xsd Drilldown into NumberOfComplaintResponseLineItemDetail in schema papinetcommondefsv2r40_xsd Drilldown into TransportInformation in schema papinetcommondefsv2r40_xsd Drilldown into ConsumptionProcess in schema papinetcommondefsv2r40_xsd Drilldown into RequestedAction in schema papinetcommondefsv2r40_xsd Drilldown into CorrectiveAction in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseReason in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseReference in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into ComplaintResponseLineStatusType in schema complaintresponsev2r40_xsdXSD Diagram of ComplaintResponseLineItem in schema complaintresponsev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ComplaintResponseLineItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ComplaintResponseLineItemNumber" />
            <xs:element ref="ComplaintLineItemNumber" />
            <xs:element ref="ComplaintResponseReference" minOccurs="0" />
            <xs:element ref="ComplaintResponseReason" />
            <xs:element ref="CorrectiveAction" minOccurs="0" />
            <xs:element ref="RequestedAction" minOccurs="0" />
            <xs:element ref="ConsumptionProcess" minOccurs="0" />
            <xs:element ref="TransportInformation" minOccurs="0" />
            <xs:element ref="NumberOfComplaintResponseLineItemDetail" minOccurs="0" />
            <xs:choice>
                <xs:element ref="ComplaintResponseSpecification" minOccurs="0" />
                <xs:element ref="ComplaintResponseLineItemDetail" minOccurs="0" maxOccurs="unbounded" />
            </xs:choice>
            <xs:element ref="Quantity" minOccurs="0" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ComplaintResponseLineNetChargeAmount" minOccurs="0" />
            <xs:element ref="e-Attachment" minOccurs="0" />
            <xs:element ref="MailAttachment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="ComplaintResponseLineStatusType" type="complaintResponseLineStatusType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ComplaintResponseLineItemNumber pn:ComplaintResponseLineItemNumber (1) (1)
ComplaintLineItemNumber pn:ComplaintLineItemNumber (1) (1)
ComplaintResponseReference pn:ComplaintResponseReference 0 (1)
ComplaintResponseReason pn:ComplaintResponseReason (1) (1)
CorrectiveAction pn:CorrectiveAction 0 (1)
RequestedAction pn:RequestedAction 0 (1)
ConsumptionProcess pn:ConsumptionProcess 0 (1)
TransportInformation pn:TransportInformation 0 (1)
NumberOfComplaintResponseLineItemDetail pn:NumberOfComplaintResponseLineItemDetail 0 (1)
ComplaintResponseSpecification pn:ComplaintResponseSpecification 0 (1)
ComplaintResponseLineItemDetail pn:ComplaintResponseLineItemDetail 0 unbounded
Quantity pn:Quantity 0 (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
ComplaintResponseLineNetChargeAmount pn:ComplaintResponseLineNetChargeAmount 0 (1)
e-Attachment pn:e-Attachment 0 (1)
MailAttachment pn:MailAttachment 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ComplaintResponseLineStatusType pn:ComplaintResponseLineStatusType Required
