Definition Type: Element
Name: CreditDebitNote
Namespace: http://www.papinet.org/v2r40
Containing Schema: CreditDebitNoteV2R40.xsd
Abstract

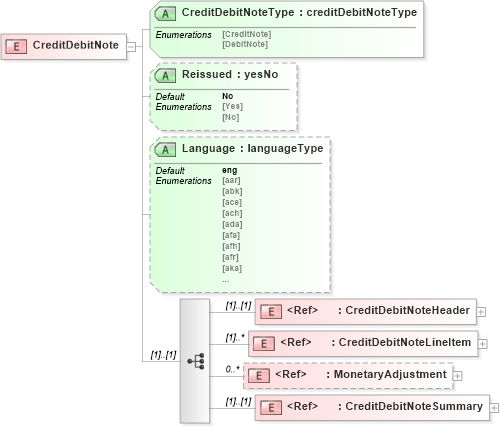

Collapse XSD Schema Diagram:
Drilldown into CreditDebitNoteSummary in schema creditdebitnotev2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into CreditDebitNoteLineItem in schema creditdebitnotev2r40_xsd Drilldown into CreditDebitNoteHeader in schema creditdebitnotev2r40_xsd Drilldown into Language in schema creditdebitnotev2r40_xsd Drilldown into Reissued in schema creditdebitnotev2r40_xsd Drilldown into CreditDebitNoteType in schema creditdebitnotev2r40_xsdXSD Diagram of CreditDebitNote in schema creditdebitnotev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="CreditDebitNote">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="CreditDebitNoteHeader" />
            <xs:element ref="CreditDebitNoteLineItem" maxOccurs="unbounded" />
            <xs:element ref="MonetaryAdjustment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="CreditDebitNoteSummary" />
        </xs:sequence>
        <xs:attribute name="CreditDebitNoteType" type="creditDebitNoteType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CreditDebitNoteHeader pn:CreditDebitNoteHeader (1) (1)
CreditDebitNoteLineItem pn:CreditDebitNoteLineItem (1) unbounded
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
CreditDebitNoteSummary pn:CreditDebitNoteSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CreditDebitNoteType pn:CreditDebitNoteType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
