Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: dimensionConstructionClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract
Collapse XSD Schema Diagram:

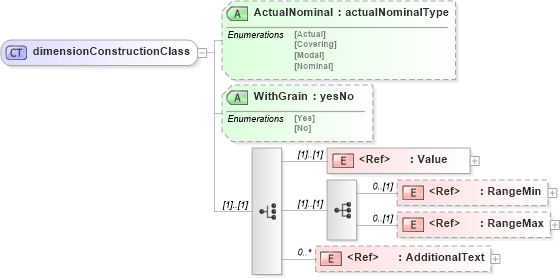

Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into RangeMax in schema papinetcommondefsv2r40_xsd Drilldown into RangeMin in schema papinetcommondefsv2r40_xsd Drilldown into Value in schema papinetcommondefsv2r40_xsd Drilldown into WithGrain in schema papinetcommondefsv2r40_xsd Drilldown into ActualNominal in schema papinetcommondefsv2r40_xsdXSD Diagram of dimensionConstructionClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="dimensionConstructionClass">
    <xs:choice>
        <xs:element ref="Value" />
        <xs:sequence>
            <xs:element ref="RangeMin" minOccurs="0" />
            <xs:element ref="RangeMax" minOccurs="0" />
        </xs:sequence>
        <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
    </xs:choice>
    <xs:attribute name="ActualNominal" type="actualNominalType" />
    <xs:attribute name="WithGrain" type="yesNo" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Value pn:Value (1) (1)
RangeMin pn:RangeMin 0 (1)
RangeMax pn:RangeMax 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ActualNominal pn:ActualNominal (Optional)
WithGrain pn:WithGrain (Optional)
Collapse Derivation Tree:
Collapse References:
pn:Length, pn:Length, pn:Length, pn:Length, pn:Width, pn:Width, pn:Width, pn:Width
