Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: Width
Namespace: http://www.papinet.org/v2r40
Type: pn:dimensionConstructionClass
Containing Schema: papiNetCommonDefsV2R40.xsd
MinOccurs (1)
MaxOccurs 2
Abstract

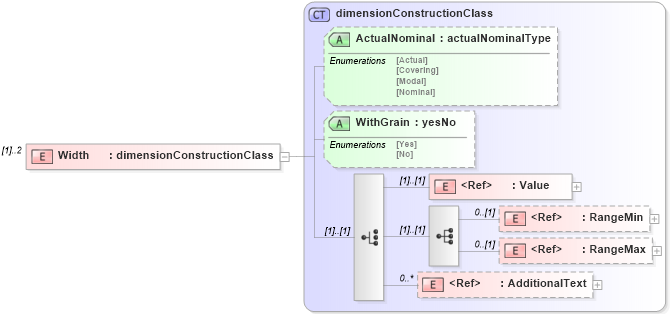

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into RangeMax in schema papinetcommondefsv2r40_xsd Drilldown into RangeMin in schema papinetcommondefsv2r40_xsd Drilldown into Value in schema papinetcommondefsv2r40_xsd Drilldown into WithGrain in schema papinetcommondefsv2r40_xsd Drilldown into ActualNominal in schema papinetcommondefsv2r40_xsd Drilldown into dimensionConstructionClass in schema papinetcommondefsv2r40_xsdXSD Diagram of Width in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="Width" type="dimensionConstructionClass" maxOccurs="2" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Value pn:Value (1) (1)
RangeMin pn:RangeMin 0 (1)
RangeMax pn:RangeMax 0 (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ActualNominal pn:ActualNominal (Optional)
WithGrain pn:WithGrain (Optional)
Collapse Derivation Tree:
