Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: ComplexType
Name: goodsReceiptLineItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

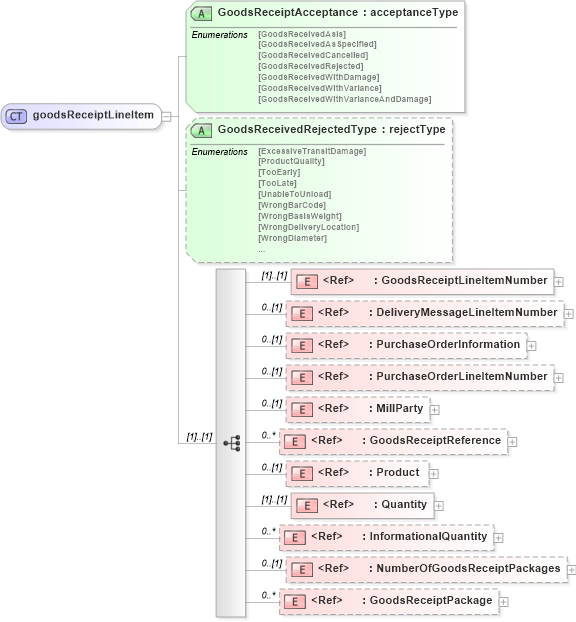

Collapse XSD Schema Diagram:
Drilldown into GoodsReceiptPackage in schema papinetcommondefsv2r40_xsd Drilldown into NumberOfGoodsReceiptPackages in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptReference in schema papinetcommondefsv2r40_xsd Drilldown into MillParty in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderInformation in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryMessageLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceivedRejectedType in schema papinetcommondefsv2r40_xsd Drilldown into GoodsReceiptAcceptance in schema papinetcommondefsv2r40_xsdXSD Diagram of goodsReceiptLineItem in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="goodsReceiptLineItem">
    <xs:sequence>
        <xs:element ref="GoodsReceiptLineItemNumber" />
        <xs:element ref="DeliveryMessageLineItemNumber" minOccurs="0" />
        <xs:element ref="PurchaseOrderInformation" minOccurs="0" />
        <xs:element ref="PurchaseOrderLineItemNumber" minOccurs="0" />
        <xs:element ref="MillParty" minOccurs="0" />
        <xs:element ref="GoodsReceiptReference" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Product" minOccurs="0" />
        <xs:element ref="Quantity" />
        <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="NumberOfGoodsReceiptPackages" minOccurs="0" />
        <xs:element ref="GoodsReceiptPackage" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="GoodsReceiptAcceptance" type="acceptanceType" use="required" />
    <xs:attribute name="GoodsReceivedRejectedType" type="rejectType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GoodsReceiptLineItemNumber pn:GoodsReceiptLineItemNumber (1) (1)
DeliveryMessageLineItemNumber pn:DeliveryMessageLineItemNumber 0 (1)
PurchaseOrderInformation pn:PurchaseOrderInformation 0 (1)
PurchaseOrderLineItemNumber pn:PurchaseOrderLineItemNumber 0 (1)
MillParty pn:MillParty 0 (1)
GoodsReceiptReference pn:GoodsReceiptReference 0 unbounded
Product pn:Product 0 (1)
Quantity pn:Quantity (1) (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
NumberOfGoodsReceiptPackages pn:NumberOfGoodsReceiptPackages 0 (1)
GoodsReceiptPackage pn:GoodsReceiptPackage 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
GoodsReceiptAcceptance pn:GoodsReceiptAcceptance Required
GoodsReceivedRejectedType pn:GoodsReceivedRejectedType (Optional)
Collapse Derivation Tree:
Collapse References:
pn:GoodsReceiptLineItem
