Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: InventoryChange
Namespace: http://www.papinet.org/v2r40
Containing Schema: InventoryChangeV2R40.xsd
Abstract

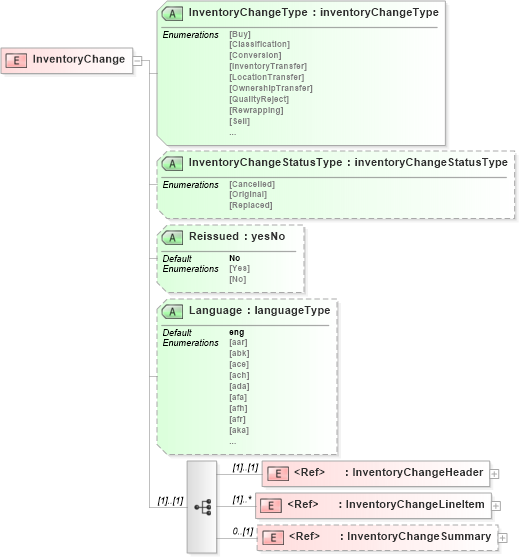

Collapse XSD Schema Diagram:
Drilldown into InventoryChangeSummary in schema inventorychangev2r40_xsd Drilldown into InventoryChangeLineItem in schema inventorychangev2r40_xsd Drilldown into InventoryChangeHeader in schema inventorychangev2r40_xsd Drilldown into Language in schema inventorychangev2r40_xsd Drilldown into Reissued in schema inventorychangev2r40_xsd Drilldown into InventoryChangeStatusType in schema inventorychangev2r40_xsd Drilldown into InventoryChangeType in schema inventorychangev2r40_xsdXSD Diagram of InventoryChange in schema inventorychangev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="InventoryChange">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="InventoryChangeHeader" />
            <xs:element ref="InventoryChangeLineItem" maxOccurs="unbounded" />
            <xs:element ref="InventoryChangeSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="InventoryChangeType" type="inventoryChangeType" use="required" />
        <xs:attribute name="InventoryChangeStatusType" type="inventoryChangeStatusType" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InventoryChangeHeader pn:InventoryChangeHeader (1) (1)
InventoryChangeLineItem pn:InventoryChangeLineItem (1) unbounded
InventoryChangeSummary pn:InventoryChangeSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
InventoryChangeType pn:InventoryChangeType Required
InventoryChangeStatusType pn:InventoryChangeStatusType (Optional)
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
