Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: ItemDetails
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

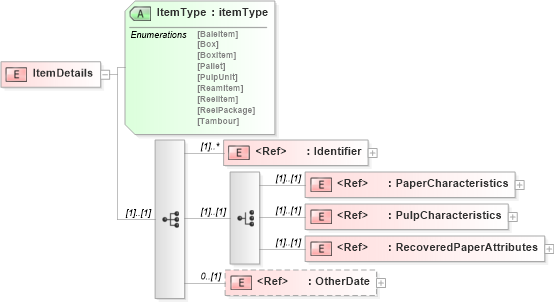

Collapse XSD Schema Diagram:
Drilldown into OtherDate in schema papinetcommondefsv2r40_xsd Drilldown into RecoveredPaperAttributes in schema papinetcommondefsv2r40_xsd Drilldown into PulpCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into PaperCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into Identifier in schema papinetcommondefsv2r40_xsd Drilldown into ItemType in schema papinetcommondefsv2r40_xsdXSD Diagram of ItemDetails in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ItemDetails">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Identifier" maxOccurs="unbounded" />
            <xs:choice>
                <xs:element ref="PaperCharacteristics" />
                <xs:element ref="PulpCharacteristics" />
                <xs:element ref="RecoveredPaperAttributes" />
            </xs:choice>
            <xs:element ref="OtherDate" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ItemType" type="itemType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier pn:Identifier (1) unbounded
PaperCharacteristics pn:PaperCharacteristics (1) (1)
PulpCharacteristics pn:PulpCharacteristics (1) (1)
RecoveredPaperAttributes pn:RecoveredPaperAttributes (1) (1)
OtherDate pn:OtherDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ItemType pn:ItemType Required
