Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: PulpCharacteristics
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

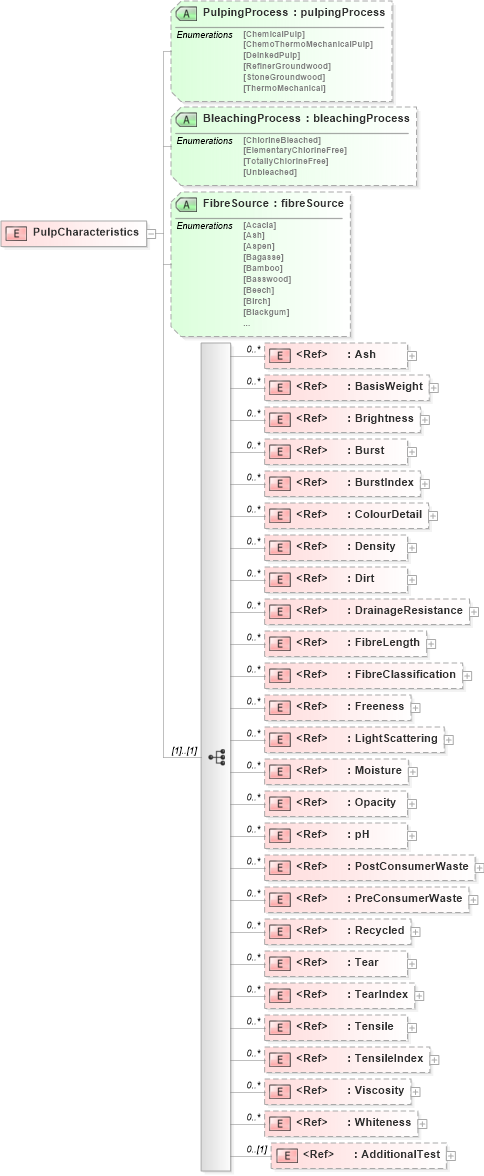

Collapse XSD Schema Diagram:
Drilldown into AdditionalTest in schema papinetcommondefsv2r40_xsd Drilldown into Whiteness in schema papinetcommondefsv2r40_xsd Drilldown into Viscosity in schema papinetcommondefsv2r40_xsd Drilldown into TensileIndex in schema papinetcommondefsv2r40_xsd Drilldown into Tensile in schema papinetcommondefsv2r40_xsd Drilldown into TearIndex in schema papinetcommondefsv2r40_xsd Drilldown into Tear in schema papinetcommondefsv2r40_xsd Drilldown into Recycled in schema papinetcommondefsv2r40_xsd Drilldown into PreConsumerWaste in schema papinetcommondefsv2r40_xsd Drilldown into PostConsumerWaste in schema papinetcommondefsv2r40_xsd Drilldown into pH in schema papinetcommondefsv2r40_xsd Drilldown into Opacity in schema papinetcommondefsv2r40_xsd Drilldown into Moisture in schema papinetcommondefsv2r40_xsd Drilldown into LightScattering in schema papinetcommondefsv2r40_xsd Drilldown into Freeness in schema papinetcommondefsv2r40_xsd Drilldown into FibreClassification in schema papinetcommondefsv2r40_xsd Drilldown into FibreLength in schema papinetcommondefsv2r40_xsd Drilldown into DrainageResistance in schema papinetcommondefsv2r40_xsd Drilldown into Dirt in schema papinetcommondefsv2r40_xsd Drilldown into Density in schema papinetcommondefsv2r40_xsd Drilldown into ColourDetail in schema papinetcommondefsv2r40_xsd Drilldown into BurstIndex in schema papinetcommondefsv2r40_xsd Drilldown into Burst in schema papinetcommondefsv2r40_xsd Drilldown into Brightness in schema papinetcommondefsv2r40_xsd Drilldown into BasisWeight in schema papinetcommondefsv2r40_xsd Drilldown into Ash in schema papinetcommondefsv2r40_xsd Drilldown into FibreSource in schema papinetcommondefsv2r40_xsd Drilldown into BleachingProcess in schema papinetcommondefsv2r40_xsd Drilldown into PulpingProcess in schema papinetcommondefsv2r40_xsdXSD Diagram of PulpCharacteristics in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PulpCharacteristics">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Ash" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="BasisWeight" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Brightness" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Burst" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="BurstIndex" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="ColourDetail" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Density" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Dirt" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DrainageResistance" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="FibreLength" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="FibreClassification" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Freeness" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="LightScattering" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Moisture" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Opacity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="pH" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PostConsumerWaste" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PreConsumerWaste" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Recycled" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Tear" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TearIndex" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Tensile" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TensileIndex" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Viscosity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Whiteness" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="AdditionalTest" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="PulpingProcess" type="pulpingProcess" />
        <xs:attribute name="BleachingProcess" type="bleachingProcess" />
        <xs:attribute name="FibreSource" type="fibreSource" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Ash pn:Ash 0 unbounded
BasisWeight pn:BasisWeight 0 unbounded
Brightness pn:Brightness 0 unbounded
Burst pn:Burst 0 unbounded
BurstIndex pn:BurstIndex 0 unbounded
ColourDetail pn:ColourDetail 0 unbounded
Density pn:Density 0 unbounded
Dirt pn:Dirt 0 unbounded
DrainageResistance pn:DrainageResistance 0 unbounded
FibreLength pn:FibreLength 0 unbounded
FibreClassification pn:FibreClassification 0 unbounded
Freeness pn:Freeness 0 unbounded
LightScattering pn:LightScattering 0 unbounded
Moisture pn:Moisture 0 unbounded
Opacity pn:Opacity 0 unbounded
pH pn:pH 0 unbounded
PostConsumerWaste pn:PostConsumerWaste 0 unbounded
PreConsumerWaste pn:PreConsumerWaste 0 unbounded
Recycled pn:Recycled 0 unbounded
Tear pn:Tear 0 unbounded
TearIndex pn:TearIndex 0 unbounded
Tensile pn:Tensile 0 unbounded
TensileIndex pn:TensileIndex 0 unbounded
Viscosity pn:Viscosity 0 unbounded
Whiteness pn:Whiteness 0 unbounded
AdditionalTest pn:AdditionalTest 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
PulpingProcess pn:PulpingProcess (Optional)
BleachingProcess pn:BleachingProcess (Optional)
FibreSource pn:FibreSource (Optional)
