Definition Type: ComplexType
Name: lumberGradeClass
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

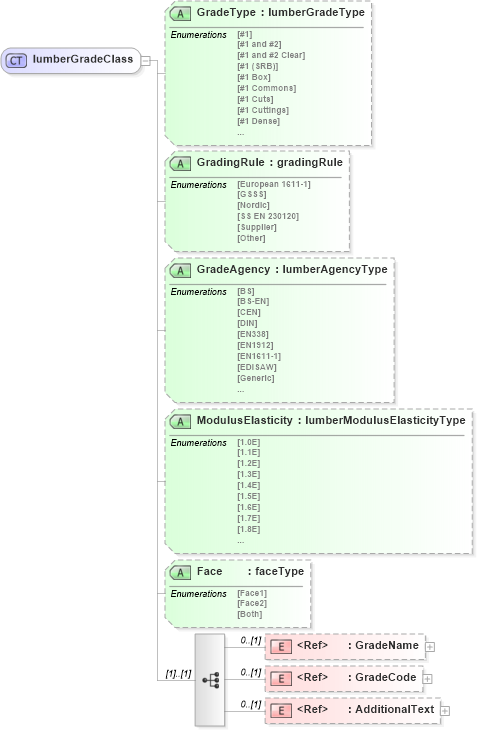

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into GradeCode in schema papinetcommondefsv2r40_xsd Drilldown into GradeName in schema papinetcommondefsv2r40_xsd Drilldown into Face in schema papinetcommondefsv2r40_xsd Drilldown into ModulusElasticity in schema papinetcommondefsv2r40_xsd Drilldown into GradeAgency in schema papinetcommondefsv2r40_xsd Drilldown into GradingRule in schema papinetcommondefsv2r40_xsd Drilldown into GradeType in schema papinetcommondefsv2r40_xsdXSD Diagram of lumberGradeClass in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="lumberGradeClass">
    <xs:sequence>
        <xs:element ref="GradeName" minOccurs="0" />
        <xs:element ref="GradeCode" minOccurs="0" />
        <xs:element ref="AdditionalText" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="GradeType" type="lumberGradeType" />
    <xs:attribute name="GradingRule" type="gradingRule" />
    <xs:attribute name="GradeAgency" type="lumberAgencyType" />
    <xs:attribute name="ModulusElasticity" type="lumberModulusElasticityType" />
    <xs:attribute name="Face" type="faceType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
GradeName pn:GradeName 0 (1)
GradeCode pn:GradeCode 0 (1)
AdditionalText pn:AdditionalText 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
GradeType pn:GradeType (Optional)
GradingRule pn:GradingRule (Optional)
GradeAgency pn:GradeAgency (Optional)
ModulusElasticity pn:ModulusElasticity (Optional)
Face pn:Face (Optional)
Collapse Derivation Tree:
Collapse References:
pn:LumberGrade
