Definition Type: ComplexType
Name: nameAddress
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

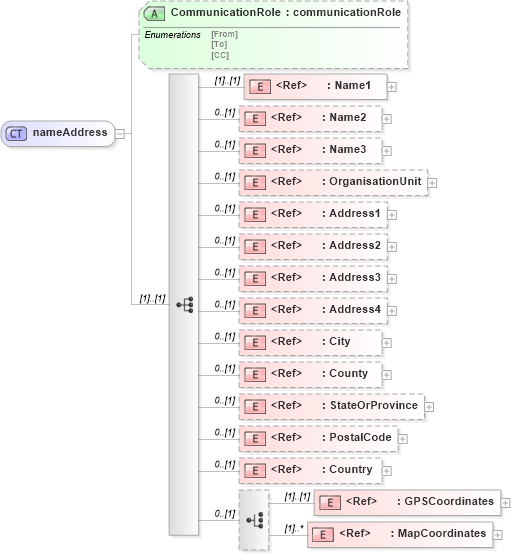

Collapse XSD Schema Diagram:
Drilldown into MapCoordinates in schema papinetcommondefsv2r40_xsd Drilldown into GPSCoordinates in schema papinetcommondefsv2r40_xsd Drilldown into Country in schema papinetcommondefsv2r40_xsd Drilldown into PostalCode in schema papinetcommondefsv2r40_xsd Drilldown into StateOrProvince in schema papinetcommondefsv2r40_xsd Drilldown into County in schema papinetcommondefsv2r40_xsd Drilldown into City in schema papinetcommondefsv2r40_xsd Drilldown into Address4 in schema papinetcommondefsv2r40_xsd Drilldown into Address3 in schema papinetcommondefsv2r40_xsd Drilldown into Address2 in schema papinetcommondefsv2r40_xsd Drilldown into Address1 in schema papinetcommondefsv2r40_xsd Drilldown into OrganisationUnit in schema papinetcommondefsv2r40_xsd Drilldown into Name3 in schema papinetcommondefsv2r40_xsd Drilldown into Name2 in schema papinetcommondefsv2r40_xsd Drilldown into Name1 in schema papinetcommondefsv2r40_xsd Drilldown into CommunicationRole in schema papinetcommondefsv2r40_xsdXSD Diagram of nameAddress in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:complexType name="nameAddress">
    <xs:sequence>
        <xs:element ref="Name1" />
        <xs:element ref="Name2" minOccurs="0" />
        <xs:element ref="Name3" minOccurs="0" />
        <xs:element ref="OrganisationUnit" minOccurs="0" />
        <xs:element ref="Address1" minOccurs="0" />
        <xs:element ref="Address2" minOccurs="0" />
        <xs:element ref="Address3" minOccurs="0" />
        <xs:element ref="Address4" minOccurs="0" />
        <xs:element ref="City" minOccurs="0" />
        <xs:element ref="County" minOccurs="0" />
        <xs:element ref="StateOrProvince" minOccurs="0" />
        <xs:element ref="PostalCode" minOccurs="0" />
        <xs:element ref="Country" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:element ref="GPSCoordinates" />
            <xs:element ref="MapCoordinates" maxOccurs="unbounded" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="CommunicationRole" type="communicationRole" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name1 pn:Name1 (1) (1)
Name2 pn:Name2 0 (1)
Name3 pn:Name3 0 (1)
OrganisationUnit pn:OrganisationUnit 0 (1)
Address1 pn:Address1 0 (1)
Address2 pn:Address2 0 (1)
Address3 pn:Address3 0 (1)
Address4 pn:Address4 0 (1)
City pn:City 0 (1)
County pn:County 0 (1)
StateOrProvince pn:StateOrProvince 0 (1)
PostalCode pn:PostalCode 0 (1)
Country pn:Country 0 (1)
GPSCoordinates pn:GPSCoordinates (1) (1)
MapCoordinates pn:MapCoordinates (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
CommunicationRole pn:CommunicationRole (Optional)
Collapse Derivation Tree:
Collapse References:
pn:NameAddress
