Definition Type: Element
Name: ProductPerformanceLineItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: ProductPerformanceV2R40.xsd
Abstract

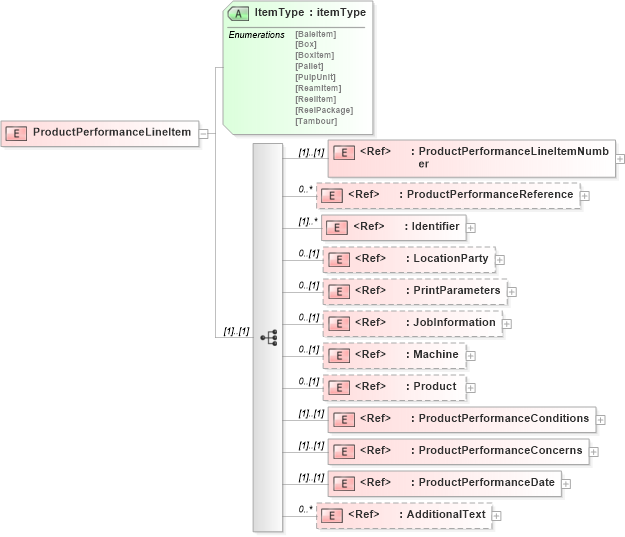

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into ProductPerformanceDate in schema papinetcommondefsv2r40_xsd Drilldown into ProductPerformanceConcerns in schema papinetcommondefsv2r40_xsd Drilldown into ProductPerformanceConditions in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsd Drilldown into Machine in schema papinetcommondefsv2r40_xsd Drilldown into JobInformation in schema papinetcommondefsv2r40_xsd Drilldown into PrintParameters in schema papinetcommondefsv2r40_xsd Drilldown into LocationParty in schema papinetcommondefsv2r40_xsd Drilldown into Identifier in schema papinetcommondefsv2r40_xsd Drilldown into ProductPerformanceReference in schema papinetcommondefsv2r40_xsd Drilldown into ProductPerformanceLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into ItemType in schema productperformancev2r40_xsdXSD Diagram of ProductPerformanceLineItem in schema productperformancev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ProductPerformanceLineItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ProductPerformanceLineItemNumber" />
            <xs:element ref="ProductPerformanceReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Identifier" maxOccurs="unbounded" />
            <xs:element ref="LocationParty" minOccurs="0" />
            <xs:element ref="PrintParameters" minOccurs="0" />
            <xs:element ref="JobInformation" minOccurs="0" />
            <xs:element ref="Machine" minOccurs="0" />
            <xs:element ref="Product" minOccurs="0" />
            <xs:element ref="ProductPerformanceConditions" />
            <xs:element ref="ProductPerformanceConcerns" />
            <xs:element ref="ProductPerformanceDate" />
            <xs:element ref="AdditionalText" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="ItemType" type="itemType" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductPerformanceLineItemNumber pn:ProductPerformanceLineItemNumber (1) (1)
ProductPerformanceReference pn:ProductPerformanceReference 0 unbounded
Identifier pn:Identifier (1) unbounded
LocationParty pn:LocationParty 0 (1)
PrintParameters pn:PrintParameters 0 (1)
JobInformation pn:JobInformation 0 (1)
Machine pn:Machine 0 (1)
Product pn:Product 0 (1)
ProductPerformanceConditions pn:ProductPerformanceConditions (1) (1)
ProductPerformanceConcerns pn:ProductPerformanceConcerns (1) (1)
ProductPerformanceDate pn:ProductPerformanceDate (1) (1)
AdditionalText pn:AdditionalText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ItemType pn:ItemType Required
