Definition Type: Element
Name: PurchaseOrder
Namespace: http://www.papinet.org/v2r40
Containing Schema: PurchaseOrderV2R40.xsd
Abstract

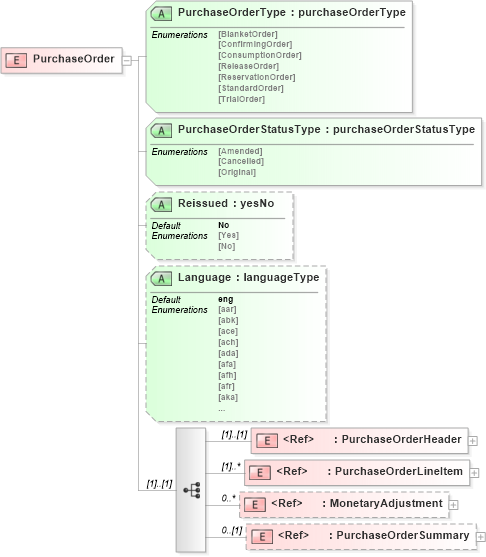

Collapse XSD Schema Diagram:
Drilldown into PurchaseOrderSummary in schema purchaseorderv2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderLineItem in schema purchaseorderv2r40_xsd Drilldown into PurchaseOrderHeader in schema purchaseorderv2r40_xsd Drilldown into Language in schema purchaseorderv2r40_xsd Drilldown into Reissued in schema purchaseorderv2r40_xsd Drilldown into PurchaseOrderStatusType in schema purchaseorderv2r40_xsd Drilldown into PurchaseOrderType in schema purchaseorderv2r40_xsdXSD Diagram of PurchaseOrder in schema purchaseorderv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PurchaseOrder">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PurchaseOrderHeader" />
            <xs:element ref="PurchaseOrderLineItem" maxOccurs="unbounded" />
            <xs:element ref="MonetaryAdjustment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="PurchaseOrderSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="PurchaseOrderType" type="purchaseOrderType" use="required" />
        <xs:attribute name="PurchaseOrderStatusType" type="purchaseOrderStatusType" use="required" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PurchaseOrderHeader pn:PurchaseOrderHeader (1) (1)
PurchaseOrderLineItem pn:PurchaseOrderLineItem (1) unbounded
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
PurchaseOrderSummary pn:PurchaseOrderSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
PurchaseOrderType pn:PurchaseOrderType Required
PurchaseOrderStatusType pn:PurchaseOrderStatusType Required
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
