Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: PurchaseOrderDetail
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

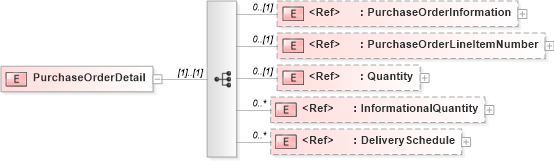

Collapse XSD Schema Diagram:
Drilldown into DeliverySchedule in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderLineItemNumber in schema papinetcommondefsv2r40_xsd Drilldown into PurchaseOrderInformation in schema papinetcommondefsv2r40_xsdXSD Diagram of PurchaseOrderDetail in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="PurchaseOrderDetail">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PurchaseOrderInformation" minOccurs="0" />
            <xs:element ref="PurchaseOrderLineItemNumber" minOccurs="0" />
            <xs:element ref="Quantity" minOccurs="0" />
            <xs:element ref="InformationalQuantity" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DeliverySchedule" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PurchaseOrderInformation pn:PurchaseOrderInformation 0 (1)
PurchaseOrderLineItemNumber pn:PurchaseOrderLineItemNumber 0 (1)
Quantity pn:Quantity 0 (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
DeliverySchedule pn:DeliverySchedule 0 unbounded
