Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: DeliverySchedule
Namespace: http://www.papinet.org/v2r40
Type: pn:deliverySchedule
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

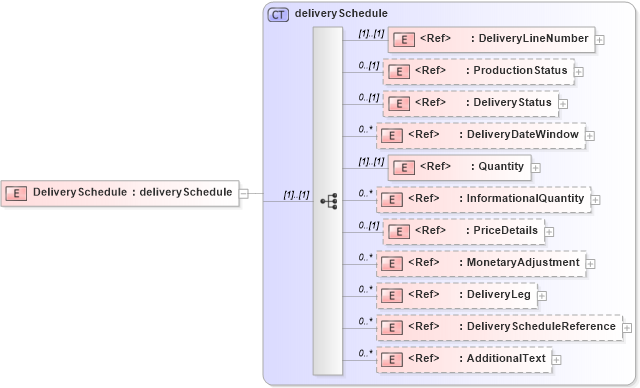

Collapse XSD Schema Diagram:
Drilldown into AdditionalText in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryScheduleReference in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLeg in schema papinetcommondefsv2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into PriceDetails in schema papinetcommondefsv2r40_xsd Drilldown into InformationalQuantity in schema papinetcommondefsv2r40_xsd Drilldown into Quantity in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryDateWindow in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryStatus in schema papinetcommondefsv2r40_xsd Drilldown into ProductionStatus in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLineNumber in schema papinetcommondefsv2r40_xsd Drilldown into deliverySchedule in schema papinetcommondefsv2r40_xsdXSD Diagram of DeliverySchedule in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliverySchedule" type="deliverySchedule" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryLineNumber pn:DeliveryLineNumber (1) (1)
ProductionStatus pn:ProductionStatus 0 (1)
DeliveryStatus pn:DeliveryStatus 0 (1)
DeliveryDateWindow pn:DeliveryDateWindow 0 unbounded
Quantity pn:Quantity (1) (1)
InformationalQuantity pn:InformationalQuantity 0 unbounded
PriceDetails pn:PriceDetails 0 (1)
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
DeliveryLeg pn:DeliveryLeg 0 unbounded
DeliveryScheduleReference pn:DeliveryScheduleReference 0 unbounded
AdditionalText pn:AdditionalText 0 unbounded
Collapse Derivation Tree:
