Definition Type: Element
Name: DeliveryLeg
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

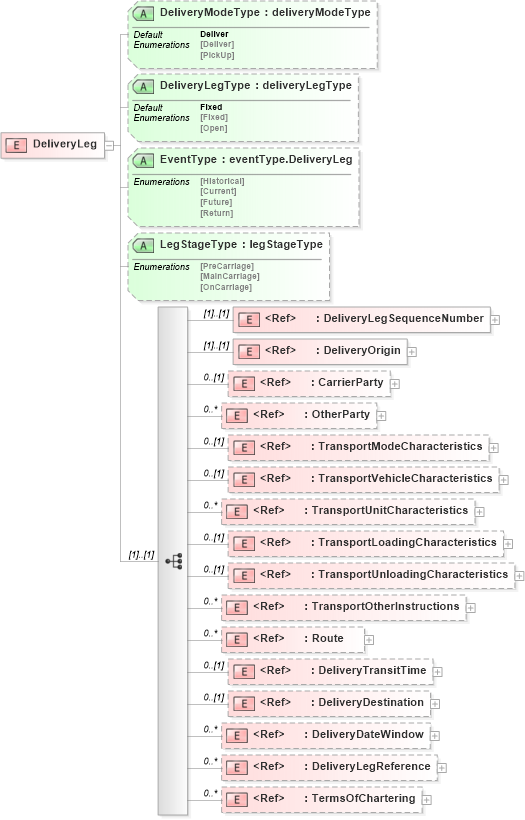

Collapse XSD Schema Diagram:
Drilldown into TermsOfChartering in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLegReference in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryDateWindow in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryDestination in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryTransitTime in schema papinetcommondefsv2r40_xsd Drilldown into Route in schema papinetcommondefsv2r40_xsd Drilldown into TransportOtherInstructions in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnloadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportLoadingCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportUnitCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportVehicleCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into TransportModeCharacteristics in schema papinetcommondefsv2r40_xsd Drilldown into OtherParty in schema papinetcommondefsv2r40_xsd Drilldown into CarrierParty in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryOrigin in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLegSequenceNumber in schema papinetcommondefsv2r40_xsd Drilldown into LegStageType in schema papinetcommondefsv2r40_xsd Drilldown into EventType in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryLegType in schema papinetcommondefsv2r40_xsd Drilldown into DeliveryModeType in schema papinetcommondefsv2r40_xsdXSD Diagram of DeliveryLeg in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="DeliveryLeg">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="DeliveryLegSequenceNumber" />
            <xs:element ref="DeliveryOrigin" />
            <xs:element ref="CarrierParty" minOccurs="0" />
            <xs:element ref="OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportModeCharacteristics" minOccurs="0" />
            <xs:element ref="TransportVehicleCharacteristics" minOccurs="0" />
            <xs:element ref="TransportUnitCharacteristics" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TransportLoadingCharacteristics" minOccurs="0" />
            <xs:element ref="TransportUnloadingCharacteristics" minOccurs="0" />
            <xs:element ref="TransportOtherInstructions" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="Route" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DeliveryTransitTime" minOccurs="0" />
            <xs:element ref="DeliveryDestination" minOccurs="0" />
            <xs:element ref="DeliveryDateWindow" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="DeliveryLegReference" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="TermsOfChartering" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="DeliveryModeType" type="deliveryModeType" use="optional" default="Deliver" />
        <xs:attribute name="DeliveryLegType" type="deliveryLegType" use="optional" default="Fixed" />
        <xs:attribute name="EventType" type="eventType.DeliveryLeg" />
        <xs:attribute name="LegStageType" type="legStageType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryLegSequenceNumber pn:DeliveryLegSequenceNumber (1) (1)
DeliveryOrigin pn:DeliveryOrigin (1) (1)
CarrierParty pn:CarrierParty 0 (1)
OtherParty pn:OtherParty 0 unbounded
TransportModeCharacteristics pn:TransportModeCharacteristics 0 (1)
TransportVehicleCharacteristics pn:TransportVehicleCharacteristics 0 (1)
TransportUnitCharacteristics pn:TransportUnitCharacteristics 0 unbounded
TransportLoadingCharacteristics pn:TransportLoadingCharacteristics 0 (1)
TransportUnloadingCharacteristics pn:TransportUnloadingCharacteristics 0 (1)
TransportOtherInstructions pn:TransportOtherInstructions 0 unbounded
Route pn:Route 0 unbounded
DeliveryTransitTime pn:DeliveryTransitTime 0 (1)
DeliveryDestination pn:DeliveryDestination 0 (1)
DeliveryDateWindow pn:DeliveryDateWindow 0 unbounded
DeliveryLegReference pn:DeliveryLegReference 0 unbounded
TermsOfChartering pn:TermsOfChartering 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
DeliveryModeType pn:DeliveryModeType Deliver Optional
DeliveryLegType pn:DeliveryLegType Fixed Optional
EventType pn:EventType (Optional)
LegStageType pn:LegStageType (Optional)
