Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: RFQResponse
Namespace: http://www.papinet.org/v2r40
Containing Schema: RFQResponseV2R40.xsd
Abstract

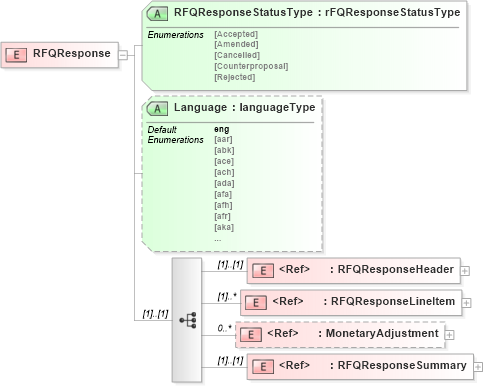

Collapse XSD Schema Diagram:
Drilldown into RFQResponseSummary in schema rfqresponsev2r40_xsd Drilldown into MonetaryAdjustment in schema papinetcommondefsv2r40_xsd Drilldown into RFQResponseLineItem in schema rfqresponsev2r40_xsd Drilldown into RFQResponseHeader in schema rfqresponsev2r40_xsd Drilldown into Language in schema rfqresponsev2r40_xsd Drilldown into RFQResponseStatusType in schema rfqresponsev2r40_xsdXSD Diagram of RFQResponse in schema rfqresponsev2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="RFQResponse">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RFQResponseHeader" />
            <xs:element ref="RFQResponseLineItem" maxOccurs="unbounded" />
            <xs:element ref="MonetaryAdjustment" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="RFQResponseSummary" />
        </xs:sequence>
        <xs:attribute name="RFQResponseStatusType" type="rFQResponseStatusType" use="required" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RFQResponseHeader pn:RFQResponseHeader (1) (1)
RFQResponseLineItem pn:RFQResponseLineItem (1) unbounded
MonetaryAdjustment pn:MonetaryAdjustment 0 unbounded
RFQResponseSummary pn:RFQResponseSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
RFQResponseStatusType pn:RFQResponseStatusType Required
Language pn:Language eng (Optional)
