Definition Type: Element
Name: ScaleTicket
Namespace: http://www.papinet.org/v2r40
Containing Schema: ScaleTicketV2R40.xsd
Abstract

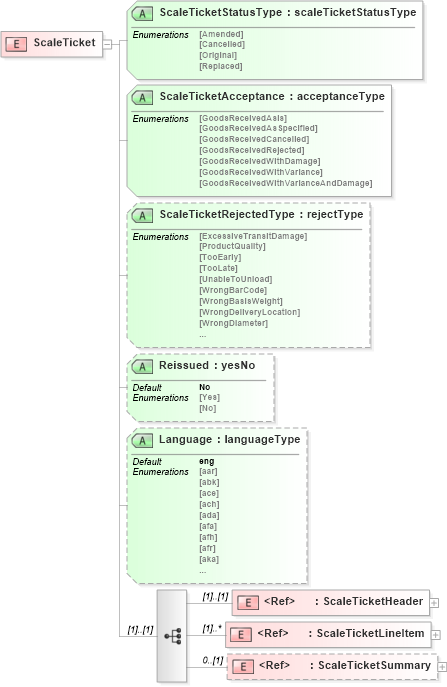

Collapse XSD Schema Diagram:
Drilldown into ScaleTicketSummary in schema scaleticketv2r40_xsd Drilldown into ScaleTicketLineItem in schema scaleticketv2r40_xsd Drilldown into ScaleTicketHeader in schema scaleticketv2r40_xsd Drilldown into Language in schema scaleticketv2r40_xsd Drilldown into Reissued in schema scaleticketv2r40_xsd Drilldown into ScaleTicketRejectedType in schema scaleticketv2r40_xsd Drilldown into ScaleTicketAcceptance in schema scaleticketv2r40_xsd Drilldown into ScaleTicketStatusType in schema scaleticketv2r40_xsdXSD Diagram of ScaleTicket in schema scaleticketv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="ScaleTicket">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ScaleTicketHeader" />
            <xs:element ref="ScaleTicketLineItem" maxOccurs="unbounded" />
            <xs:element ref="ScaleTicketSummary" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="ScaleTicketStatusType" type="scaleTicketStatusType" use="required" />
        <xs:attribute name="ScaleTicketAcceptance" type="acceptanceType" use="required" />
        <xs:attribute name="ScaleTicketRejectedType" type="rejectType" />
        <xs:attribute name="Reissued" type="yesNo" default="No" />
        <xs:attribute name="Language" type="languageType" default="eng" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScaleTicketHeader pn:ScaleTicketHeader (1) (1)
ScaleTicketLineItem pn:ScaleTicketLineItem (1) unbounded
ScaleTicketSummary pn:ScaleTicketSummary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ScaleTicketStatusType pn:ScaleTicketStatusType Required
ScaleTicketAcceptance pn:ScaleTicketAcceptance Required
ScaleTicketRejectedType pn:ScaleTicketRejectedType (Optional)
Reissued pn:Reissued No (Optional)
Language pn:Language eng (Optional)
