Documentation for papiNet - e-business standard for the paper and forest industry
Definition Type: Element
Name: WoodItem
Namespace: http://www.papinet.org/v2r40
Containing Schema: papiNetCommonDefsV2R40.xsd
Abstract

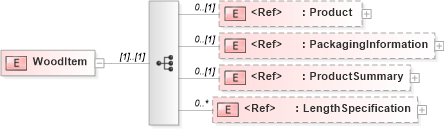

Collapse XSD Schema Diagram:
Drilldown into LengthSpecification in schema papinetcommondefsv2r40_xsd Drilldown into ProductSummary in schema papinetcommondefsv2r40_xsd Drilldown into PackagingInformation in schema papinetcommondefsv2r40_xsd Drilldown into Product in schema papinetcommondefsv2r40_xsdXSD Diagram of WoodItem in schema papinetcommondefsv2r40_xsd (papiNet - e-business standard for the paper and forest industry)
Collapse XSD Schema Code:
<xs:element name="WoodItem">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Product" minOccurs="0" />
            <xs:element ref="PackagingInformation" minOccurs="0" />
            <xs:element ref="ProductSummary" minOccurs="0" />
            <xs:element ref="LengthSpecification" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Product pn:Product 0 (1)
PackagingInformation pn:PackagingInformation 0 (1)
ProductSummary pn:ProductSummary 0 (1)
LengthSpecification pn:LengthSpecification 0 unbounded
